LATERAL F-PLN management
J43126AA 00
© THALES AVIONICS S.A.
AIRBUS A318/319/320/321
If an intercept point (INTCPT) is computed by FMS,
"ADJUST DESIRED HDG/TRK" s-pad msg (amber) is triggered.

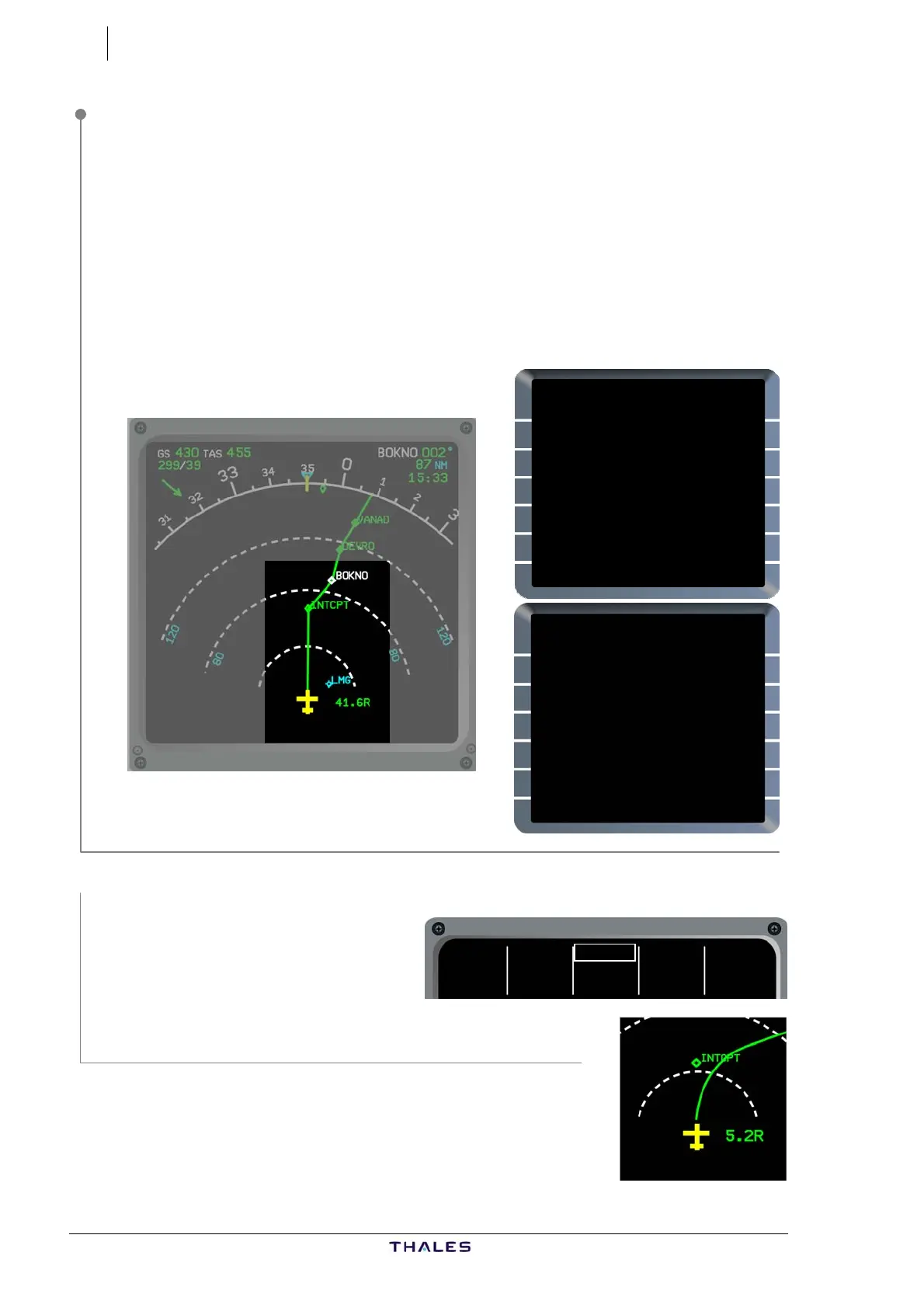

In the example below, DIR TO RADIAL IN 210 to BOKNO is inserted;
HDG is 350°.
− A FMS INTCPT computation is available because angle between
HDG and selected radial is less than 160°.
− INTCPT is displayed on ND but not on F-PLN page.
− FMS track is shown by a solid green line (NAV is still armed).
− Distance to INTCPT is shown as XTK error.
− INTCPT point on ND is constantly updated to reflect current track
and position with respect to the intercept radial.
When course capture criteria are satisfied:
− NAV mode is captured,
− FMA shows NAV (green).
Distance to radial for NAV
capture varies from different
criteria (e.g. Ground Speed, angle of interception).
To leave MANUAL leg in case of RADIAL OUT refer to
F-PLN sequencing in this chapter.
MACH
NAV
AP1
1FD2
A/THR
ALT CRZ
DIR TO
WAYPOINT UTC DIST
BOKNO 1405 97
F-PLN WPTS
BOKNO DIRECT TO }
WITH
{DEVRO ABEAM PTS }
RADIAL IN
{VANAD 210°
RADIAL OUT
{VADOM [ ]°
DIR TO DIR TO
{ERASE INSERT*
£$
FROM THV001 {}
UTC SPD/ALT
IN-BND 1520 / -----
BRG002° 87
BOKNO 1533 " / "
UN874 TRK007° 27
DEVRO 1437 " / "
UN874 22
VANAD 1540 " / "
UN874 45NM
VADOM 1546 " / "
DEST UTC DIST EFOB
EGLL27R 1625 397 4.3
ADJUST DESIRED HDG/TRK£$
