MULTIPHASE
18 VERTICAL F-PLN management
MCDU:
F-PLN page A shows predicted altitude/FL as described above.
ND:
− If managed vertical mode is engaged (CLB/DES mode) and CSTR is
selected on EFIS panel, revise point is circled magenta when entered
ALT CSTR is matched; if missed it is circled amber.
− If vertical mode is selected (OP CLB/OP DES) ALT CSTR is shown
circled white. The constraint is ignored.

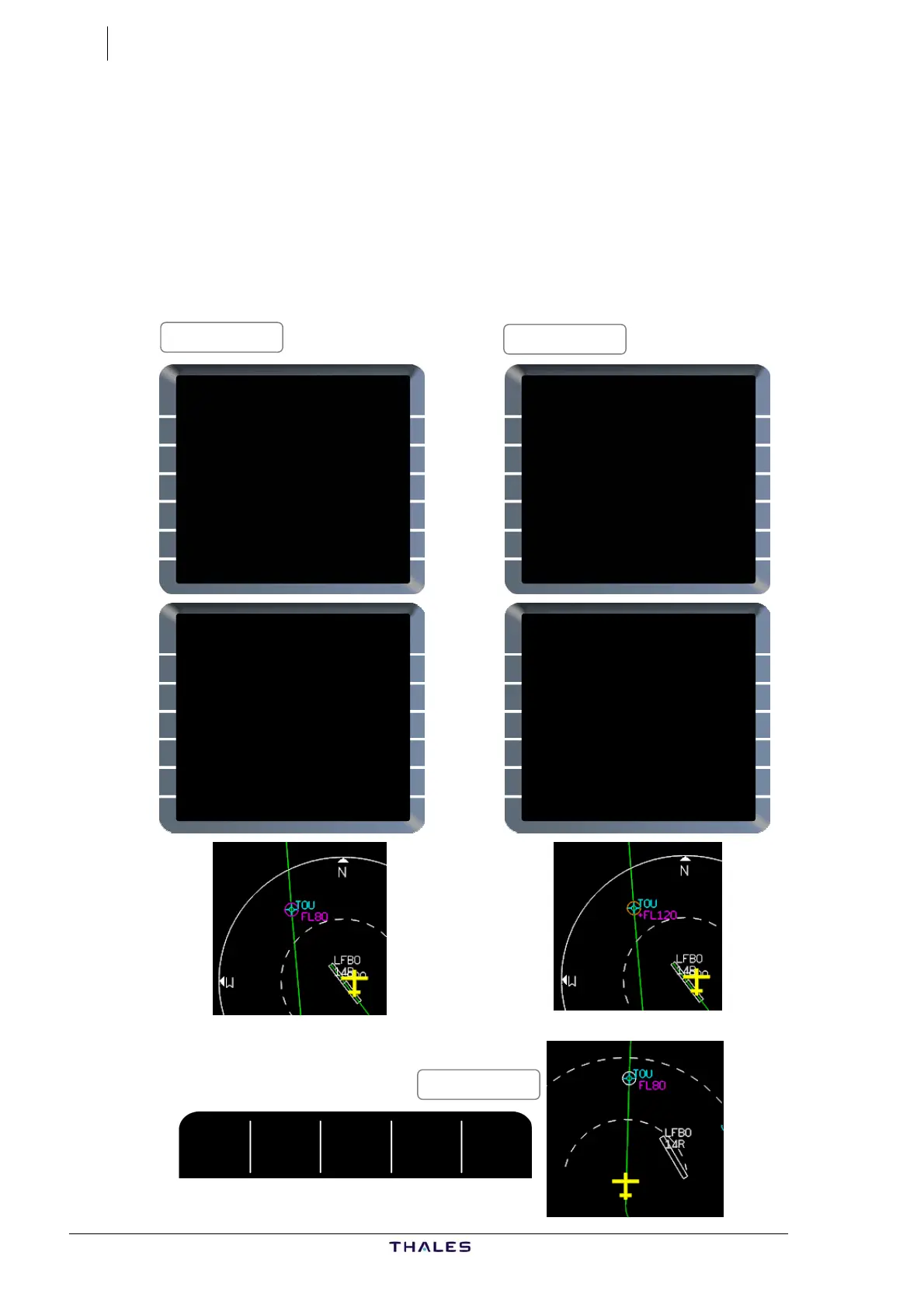

Examples below.
MISSED
MATCHED
VERT REV AT TOU
EFOB=7.2 EXTRA=1.3
CLB SPD LIM UTC CSTR
250/FL100 [ ]
SPD CSTR ALT CSTR
[ ] +FL120
ALT ERROR
-3500
ACCESS
<WIND DATA STEP ALTS>
<RETURN
VERT REV AT TOU
EFOB=7.2 EXTRA=1.3
CLB SPD LIM UTC CSTR
250/FL100 [ ]
SPD CSTR ALT CSTR
[ ] FL080
ACCESS
<WIND DATA STEP ALTS>
<RETURN
FROM THV001 {}
FIST5A UTC SPD/ALT
LFBO14R 0000 141/ 490
FROM THV001 {}
FIST5A UTC SPD/ALT
LFBO14R 0000 141/ 490
H144° BRG144° 1
900 0000 153/ 900
C144° TRK144° 4
D144H} 0002 " / *3130
C356° 8
TOU 0005 250/ *FL80
(SPD) 3NM
(LIM) 0005 *250/FL100
DEST UTC DIST EFOB
EGLL27R 0125 532 4.3
£$
H144° BRG144° 1
900 0000 153/ 900
C144° TRK144° 4
D144H} 0002 " / *3130
C356° 8
TOU 0005 250/ *FL85
(SPD) 3NM
(LIM) 0005 *250/FL100
DEST UTC DIST EFOB
EGLL27R 0125 532 4.3
£$
THR CLB
NAV
OP CLB
ALT
AP1
1FD2
A/THR
IGNORED
J43126AA 00
