Thales FMGS - Page 488

MULTI PHASE
40 NAVIGATION management & monitoring
 IRS1, IRS2, IRS3 pages
Accessed via prompts [1,2,3L] on
IRS MONITOR page.
These pages display data given by
associated IRS, as shown.
If IRS is in ATT mode, MHDG label
[3R] shows entered HDG.
Wind direction [4L] is True.
If a hybrid GPS/IRS system is
installed GPIRS position [5L] and
accuracy (in Meters) [4R] are
shown; otherwise these fields are
blank.
FREEZE/UNFREEZE prompts [6L]
enables display of all 3 IRS data
pages to be frozen and unfrozen
simultaneously. Time of freezing is
shown in title.
If IRS pages are deselected,
FREEZE function is automatically
cancelled.
NEXT IRS> prompt allows access
to other IRS data pages.

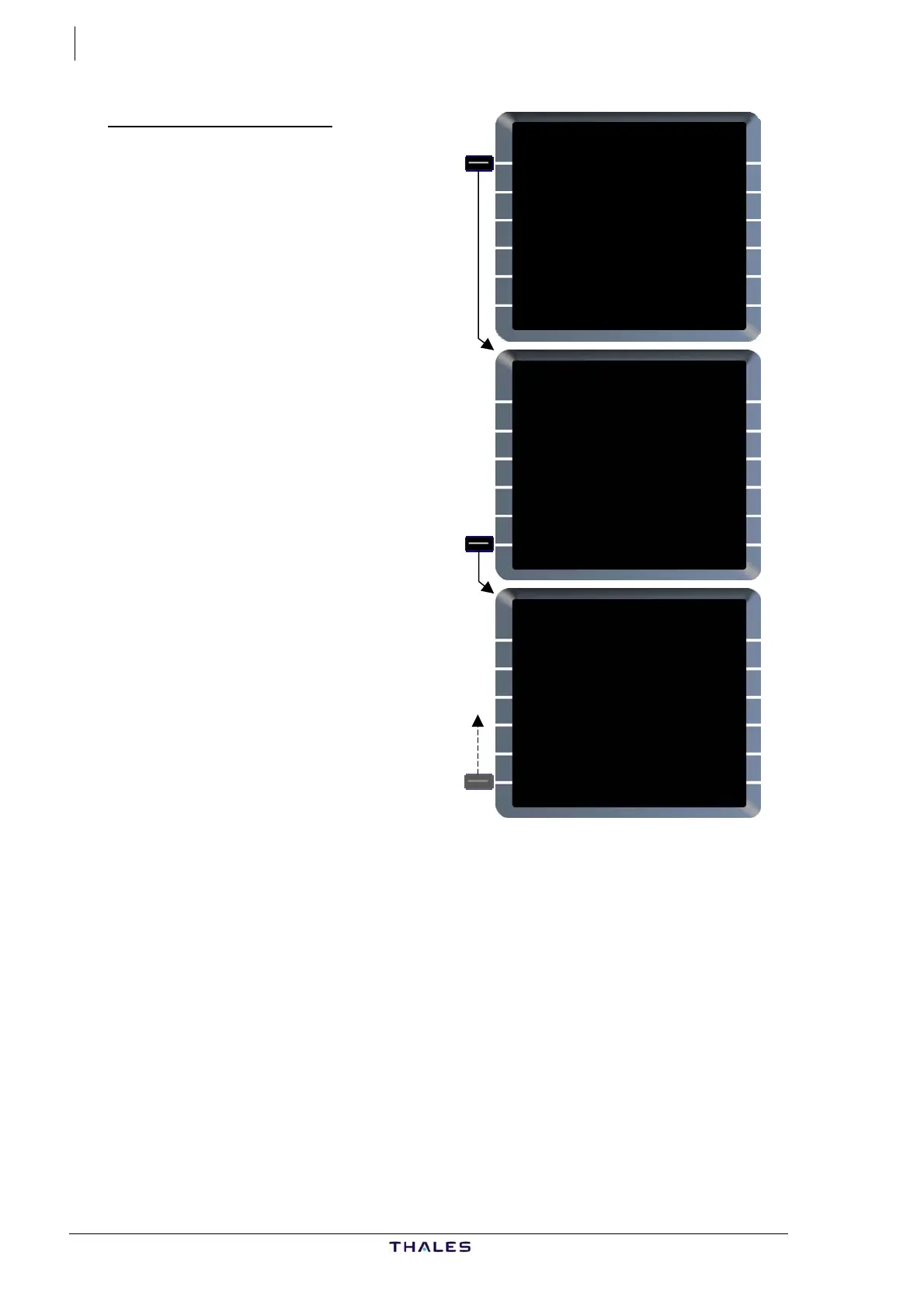

IRS1 FROZEN AT 1535
POSITION
45°09.8N/000°49.5E
TTRK GS
337.2 423
THDG MHDG
334.1 335.7
WIND GPIRS ACCUR
300°/040 100M
GPIRS POSITION
45°09.8N/000°49.5E
{UNFREEZE NEXT IRS>
IRS MONITOR
<IRS1
NAV
<IRS2
NAV
<IRS3
NAV
IRS1
POSITION
45°09.8N/000°49.5E
TTRK GS
337.2 423
THDG MHDG
334.1 335.7
WIND GPIRS ACCUR
300°/040 100M
GPIRS POSITION
45°09.8N/000°49.5E
{FREEZE NEXT IRS>
