APPENDICES
6 LS ND SYMBO
J43126AA 00
© THALES AVIONICS S.A.
AIRBUS A318/319/320/321

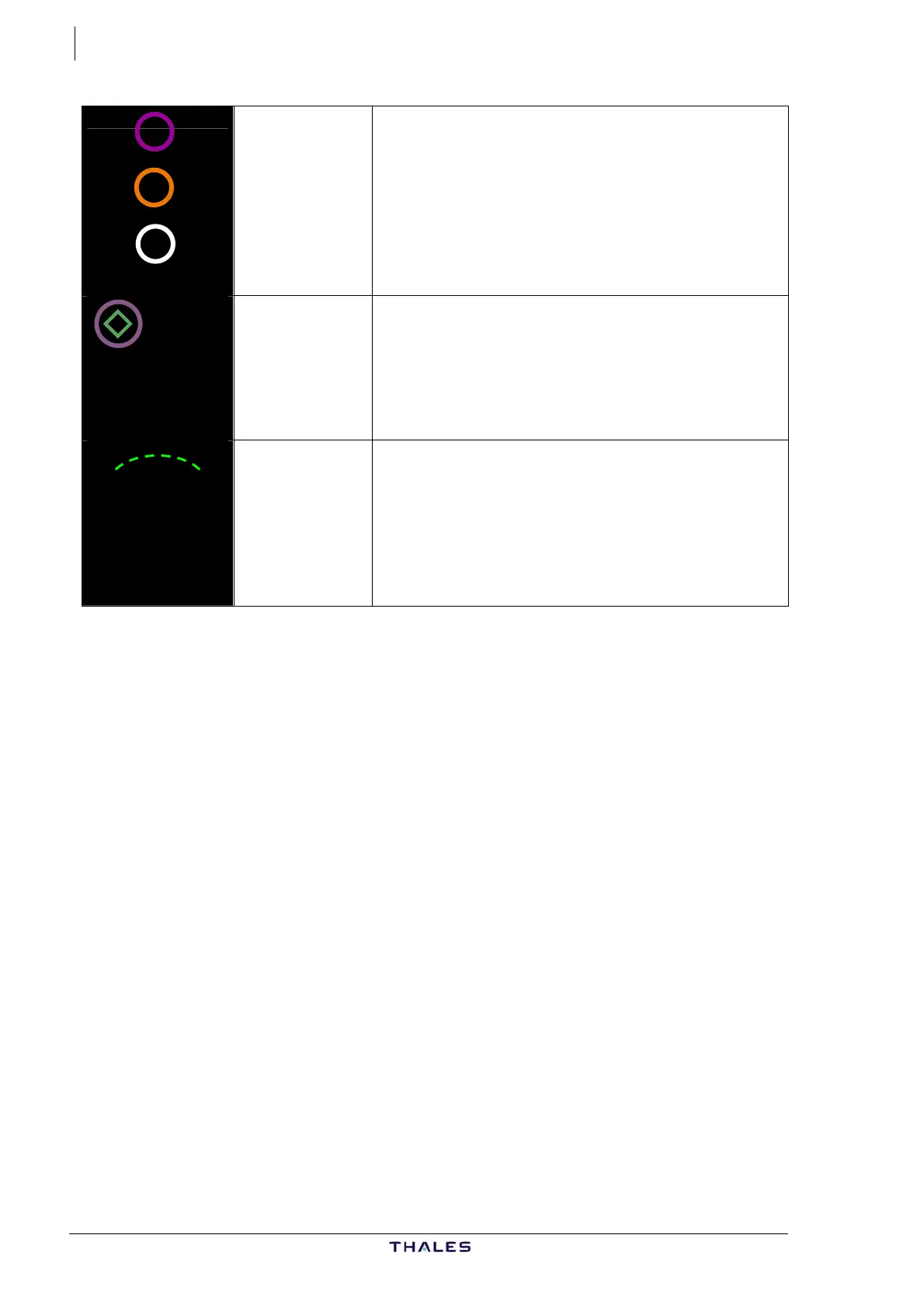

ALT CSTR
symbol
At constrained waypoint:
Magenta, when the ALT CSTR is predicted
to be satisfied,
Amber, when the ALT CSTR is predicted
to be missed,
White, when the ALT CSTR is not taken
into account by the guidance, and NAV
mode is engaged.
Vertical
constraints
Vertical constraints at a WPT (ALT, SPD,
TIME constraints), displayed in magenta
if CSTR is selected on EFIS control panel.
ENERGY
CIRCLE
symbol
Is centered on the aircraft position and
oriented to the current track line.
Represents the Required Distance to
Land.
Only displayed in the descent and
approach phases, when a selected lateral
mode is engaged (HDG or TRK).
BIG
FL7O
22OKT
16:2O
