Topcon 3D OCT-1 User Manual

98
DISPLAYING TOMOGRAMS
3.4.5. A-5: Tomogram display area/Auxiliary tomogram display area
The tomogram display area indicates both 2D and 3D scan images. The auxiliary tomogram display area
indicates only the 2D scan images. It is possible to perform registration between the fundus/anterior seg-
ment image display area and these two areas by the "Pin-point Registration™" function. For details, refer
to "Pin-point Registration™" on P.121.

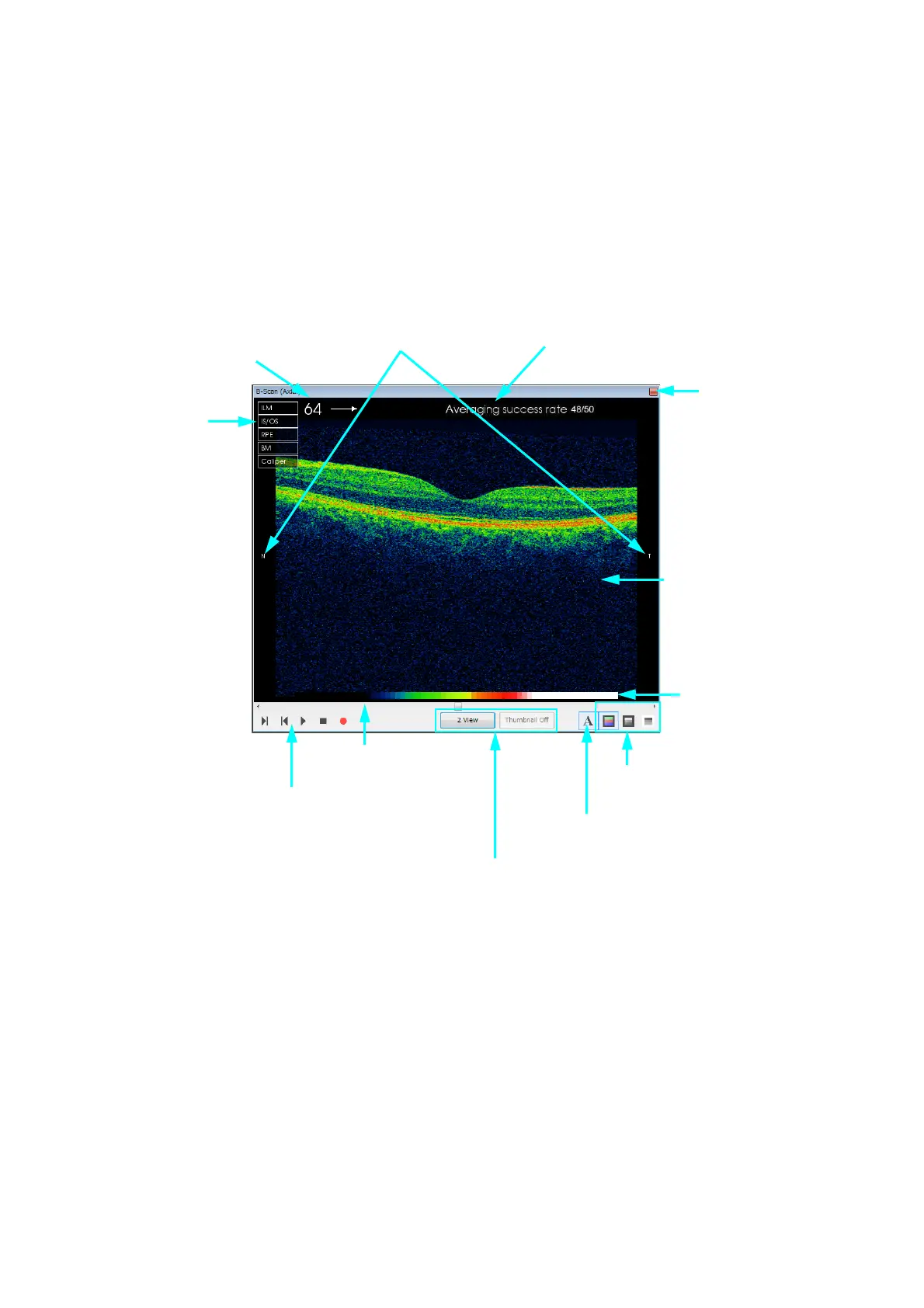

Explanation of Window
[Tomogram display area]
The tomogram display area indicates the 2D scan tomogram in 2D mode.
E-10:
Menu
E-1:
Tomog r am
E-3:
Orientation Markers
E-2:
Scan Position Number/
Scan direction
E-9:
Color change
E-8:
Annotation
E-7:
2 View / Thumbnail Off
E-4:
Slide Scroll
E-5:
Slice Movie Function
E-11:
Overlap success image count
E-12:
Maximize
E-6:
Colormap
