Topcon 3D OCT-1 User Manual

83
DISPLAYING TOMOGRAMS

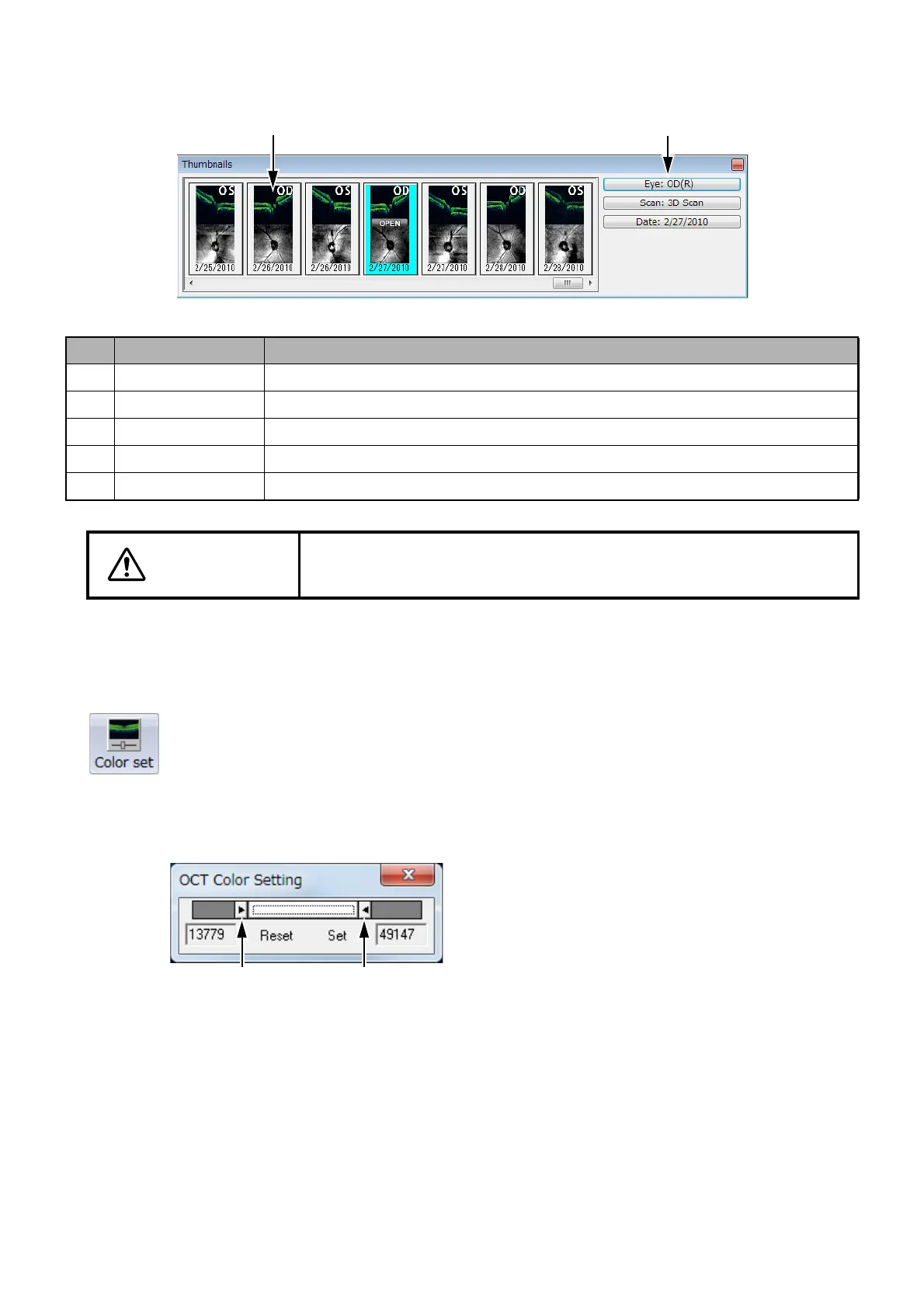

3.4.1. A-1: Thumbnail area
3.4.2. A-2: Image Processing Controls area
[Scale adjustment]
Color set: Press the [Color set] button, and the "OCT Color Setting" window.
It is possible to adjust the color map of tomogram by adjusting the scale on the "OCT Color Setting"
window.
The data lower than the value of "Noise Floor" (NF) (noise reference surface) is displayed in black.
The data higher than the value of "Max" is displayed in white. "25%" of the data range is the initial
value for "NF", and "75%" for "Max".
The changed value is held by the [Set] button. The initial value is set again by the [Reset] button.
ID Name Description
B-1 Thumbnail Displays the thumbnail images of the data applicable to the conditions of B-2.
B-2 Filter You can specify three conditions.
Eye You can specify the right or left eye.
Scan You can specify the type of scan used for photography.
Date You can specify the date of photography.
CAUTION
For "B-2: Filter", the data of the image being displayed are used and so
you cannot change the values of "Filter" directly.
B-1:
Thumbnail
B-2:
Filter
Noise Floor (NF) Max
