Topcon 3D OCT-1 - Red-Free Fundus Image Analysis; How to Analyze

150
ANALYZING TOMOGRAMS
4.5. Red-free Fundus Image Analysis
4.5.1. How to analyze

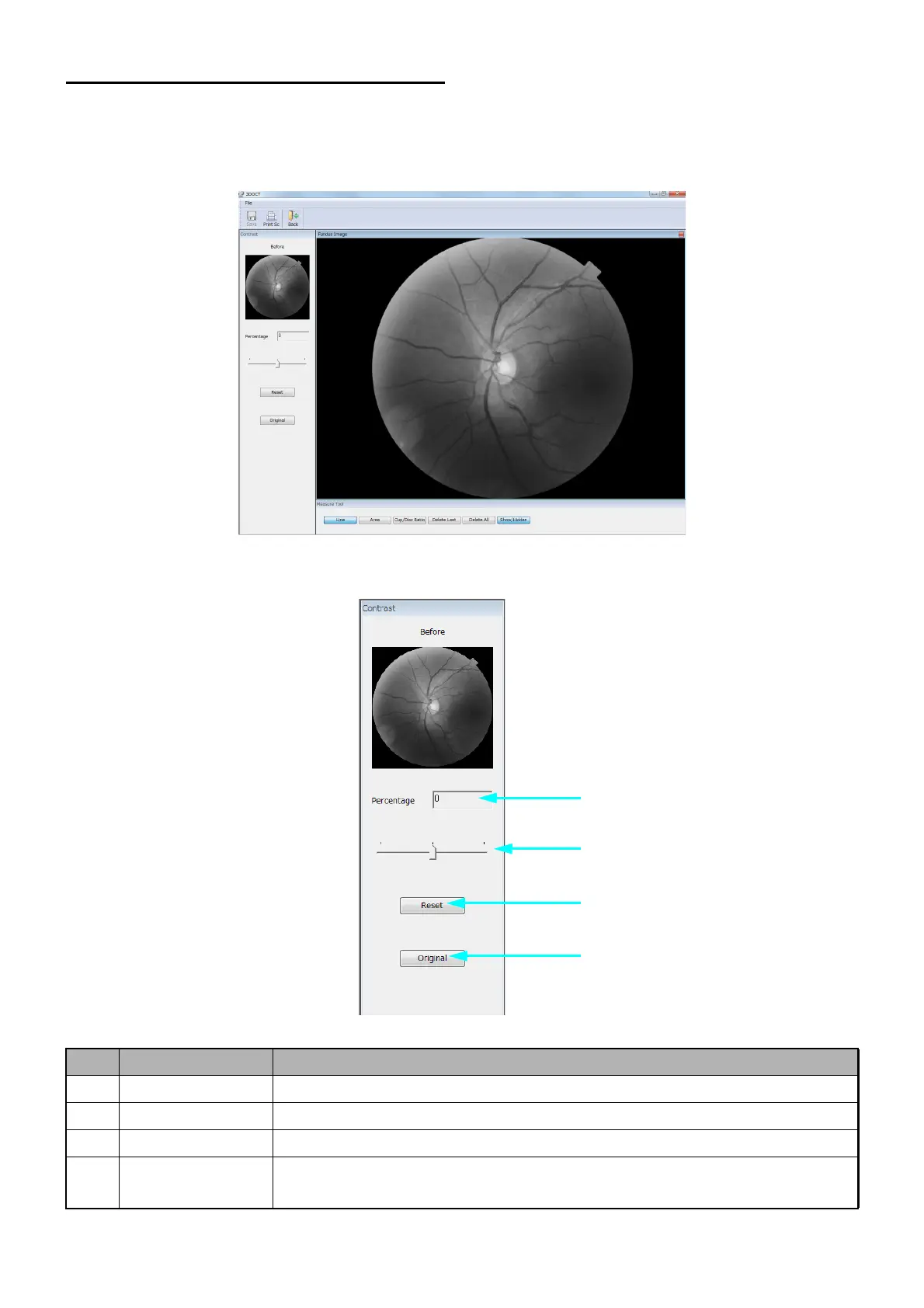

1 Click [Analyze] at the lower right corner while the red-free fundus image is displayed. The red-
free fundus image analysis window is displayed.
2 Adjust the contrast by the contrast adjustment function of "A-1" to "A-2".
ID Name Description
A-1 Adjustment value The adjusted contrast value
A-2 Adjustment bar Slide the bar to adjust the contrast.
A-3 [Reset] button Discards the current adjustment and returns to the contrast before analysis.
A-4 [Original] button Discards the current adjustment and returns to the original red-free image
whose contrast is not adjusted.
A-1
A-2
A-3
A-4
