CAPTURING TOMOGRAMS
2.2. Selecting the Patient
Select the patient to
be photographed. In the case of a n
ew patient, click [Register New Patient].
The patient informat
ion registration dialog box is displa
yed. If the patient information already exist
s in
database, select the p
atient from the Search Patient panel.

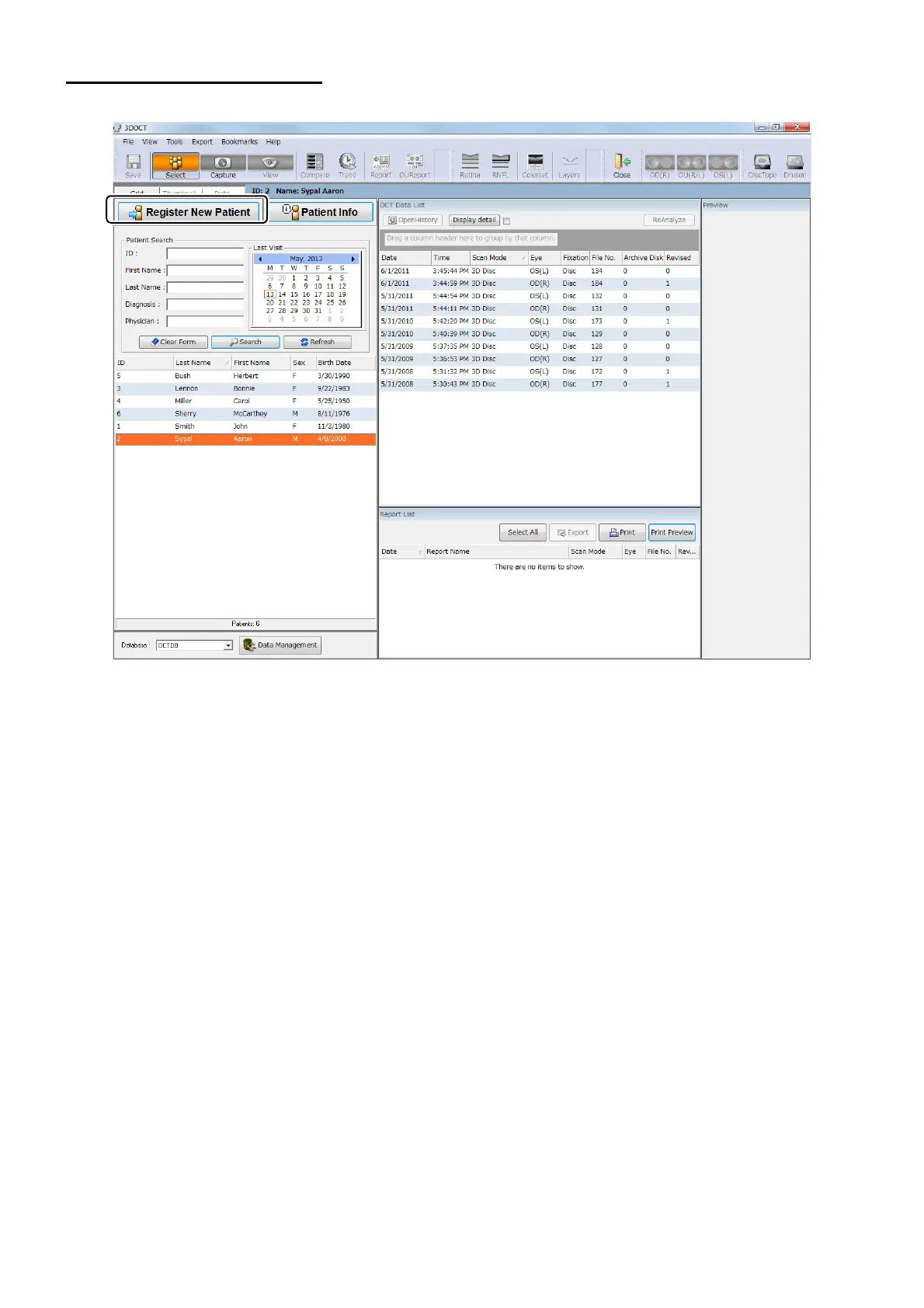

Patient selection window
