CAPTURING TOMOGRAMS
2.6.6. C-6 Information window

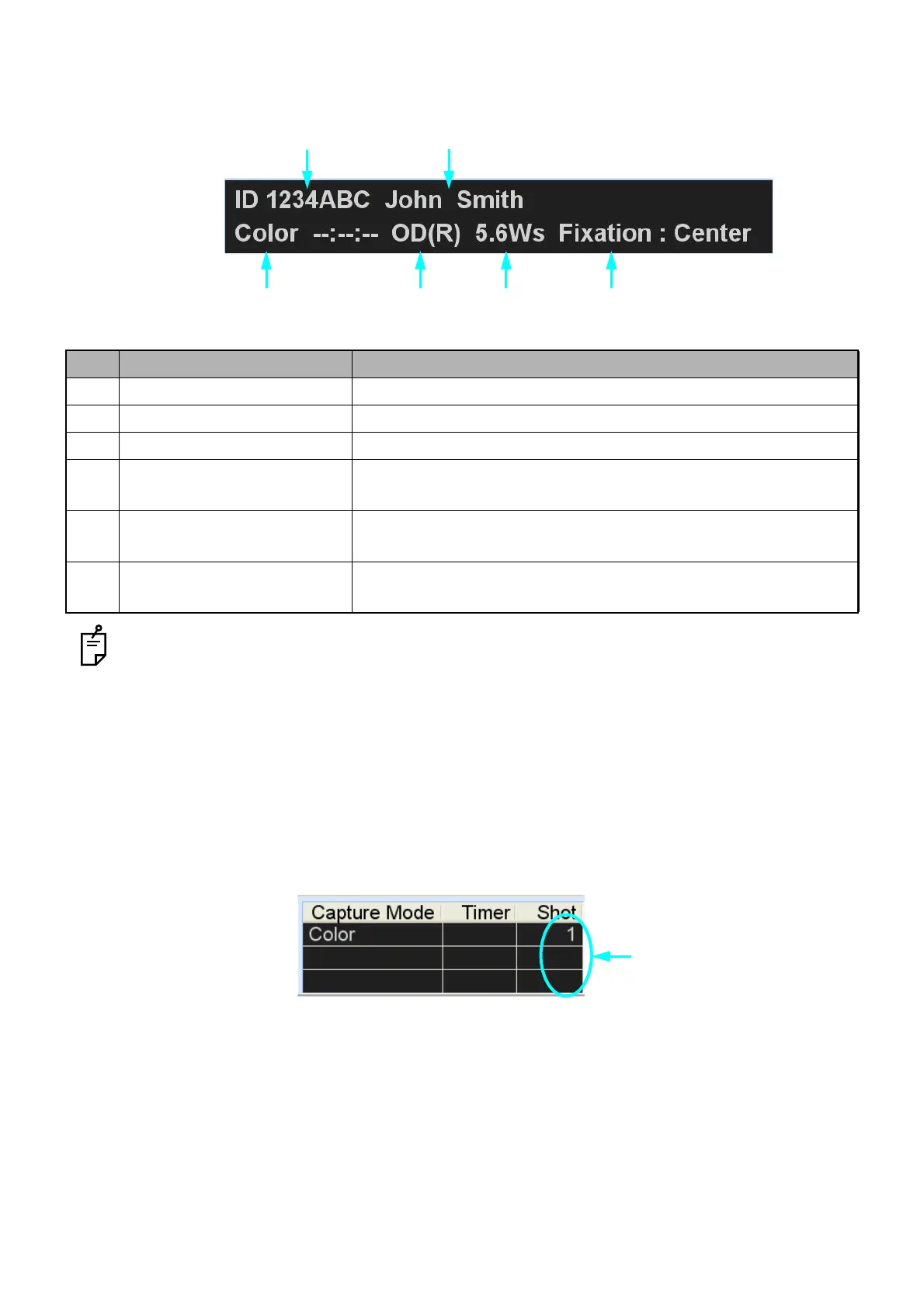

The information about the patient and the OCT instrument body is displayed.
The FA timer counter is displayed only when the timer counter is counting for FA photography
images.
The real-time status of the OCT instrument body is displayed in the areas of the fundus photogra-
phy mode, the right/left information of the photographed eye, the flash level and fixation position of
the OCT instrument body.
2.6.7. C-7 Photography result display list
The count of the photographed images in each photography mode is displayed.
Only in the FA fundus photography mode, the timer is displayed while "Timer" is counting.
No. Information Contents
(1) Patient ID The patient ID entered before photography
(2) Patient name The patient name entered before photography
(3) Fundus photography mode Indicates "Color fundus photography".
(4) Right/left information of the
photographed eye
"OS: (L)" for left eye and "OD (R)" for right eye are displayed.
(5) Flash level of the
OCT instrument body
Displays the flash level ("Ws" value).
(6) Fixation position of the OCT
instrument body
Displays one of "Disc", "Macula", "Center" and "External fixation
target".
(1)
(2)
(3) (4) (5)
(6)
Count of the photographed
images
