DISPLAYING TOMOGRAMS

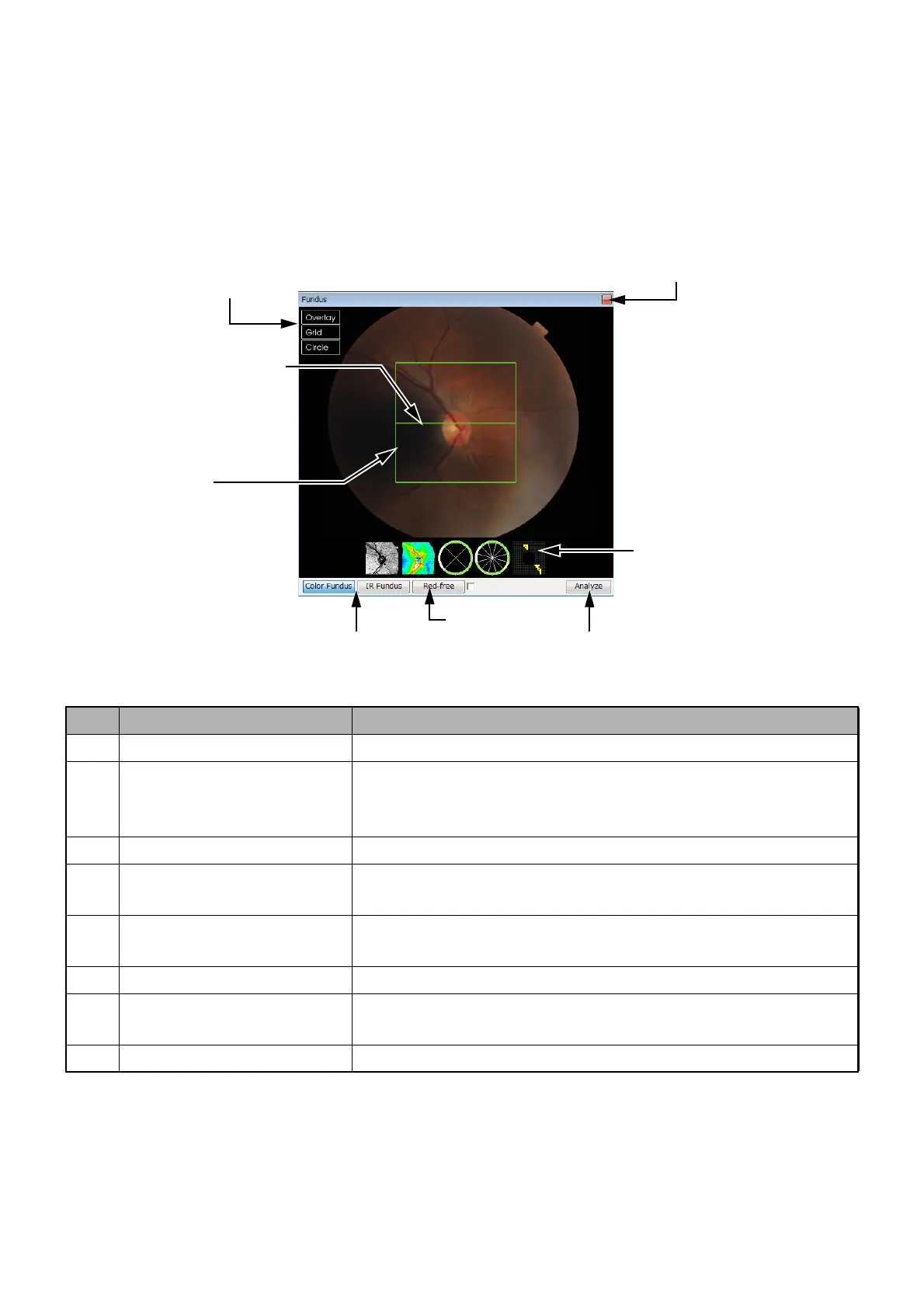

3.4.3. A-3: Fundus/Anterior Segment Image Display Area

Explanation of Window

This window displays the fundus or anterior segment image.

The positional correlation between the image on the fundus/anterior segment image display area and the

tomograms on the 3D/auxiliary tomogram display areas is indicated, including the "overlay" image. For

details, refer to "Pin-point Registration™" on P.121. In this chapter, the fundus image will be explained as

an example.

ID Name Description

C-1 Color and B/W selection Select the color or B/W image. ("Color" is selected as default.)

C-2 Red-free mode Shifts to the red-free image. (When a mark is placed in the check

box at the right of "Red-free", the red-free image is automatically

displayed in the next photography and after.)

C-3 Fundus image analysis Shifts to the fundus image analysis screen.

C-4 Thumbnail overlay image The images which can selected from the "overlay" menu are dis-

played as thumbnails.

C-5 Maximize Maximize this sub-window to the whole screen or return to its

original size.

C-6 Menu Menu (This will be explained in "How to use the menu"on P. 87.)

C-7 Tomogram location indicator The tomogram of the part shown by this indicator is displayed on

Window A.

C-8 3D scanning area This shows the 3D scanning area.

C-1:

Color / B/W selection

C-6:

C-5:

Maximize

C-4:

Tumbnail overlay

C-8:

3D scanning area

C-7:

Tomogram location indicator

C-3:

Analysis of fundus image

C-2:

Red-free mode

Topcon 3D OCT-1 User Manual
