78
DISPLAYING TOMOGRAMS

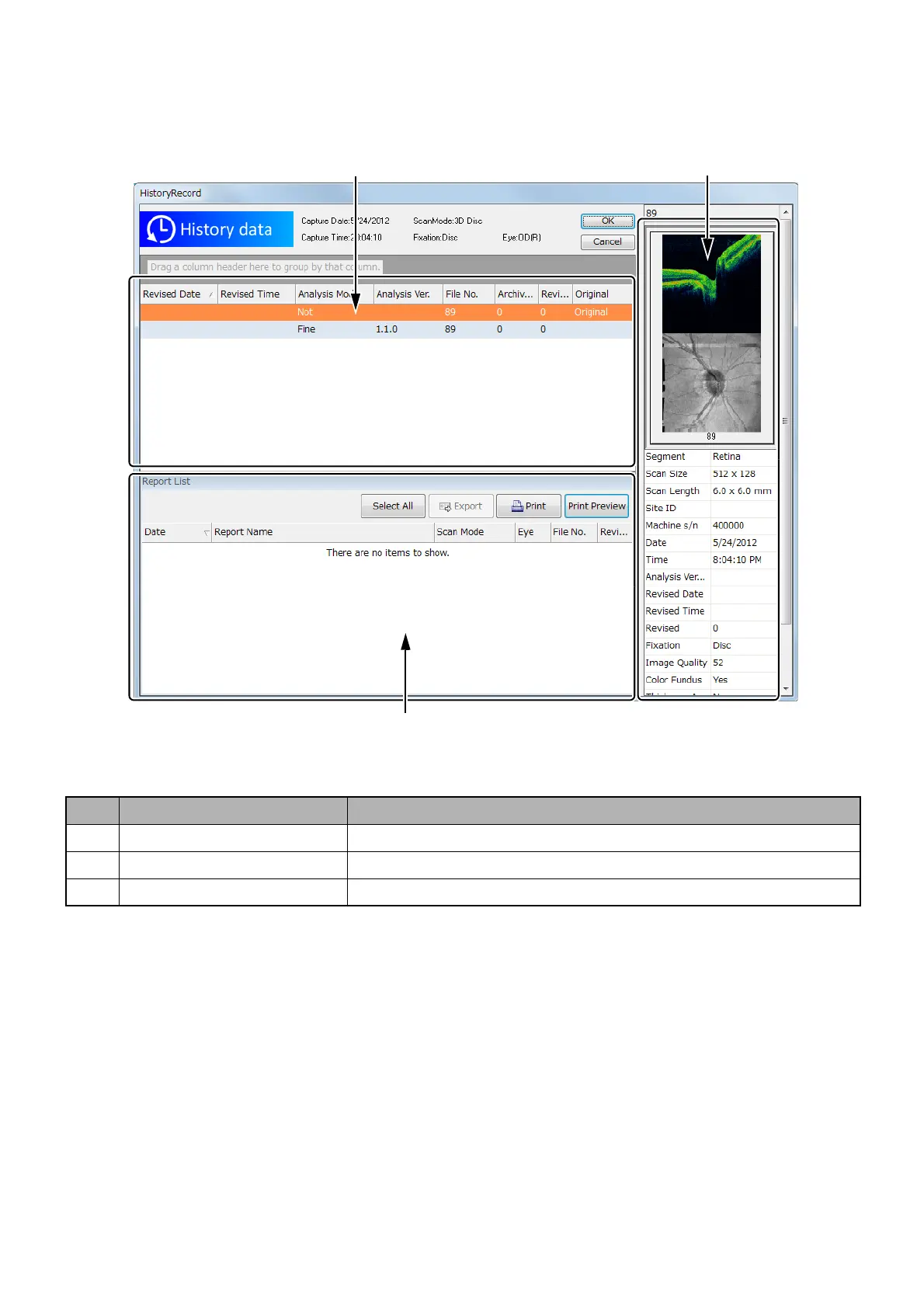

3.3.2. History dat
a list screen
Select the data
to be displayed and press the [OK] button.
The View windo
w is accessed.
ID
Name
Contents
A-1
OCT dat
a list
The revised dat
a history list is displayed.
A-2
Report list
The report of the selected dat
a is displayed.
A-3
Preview
Displays the selected data
information and thumbnails.
A-1:
OCT Data list
A-3:
Preview Panel
A-2:
Report list
