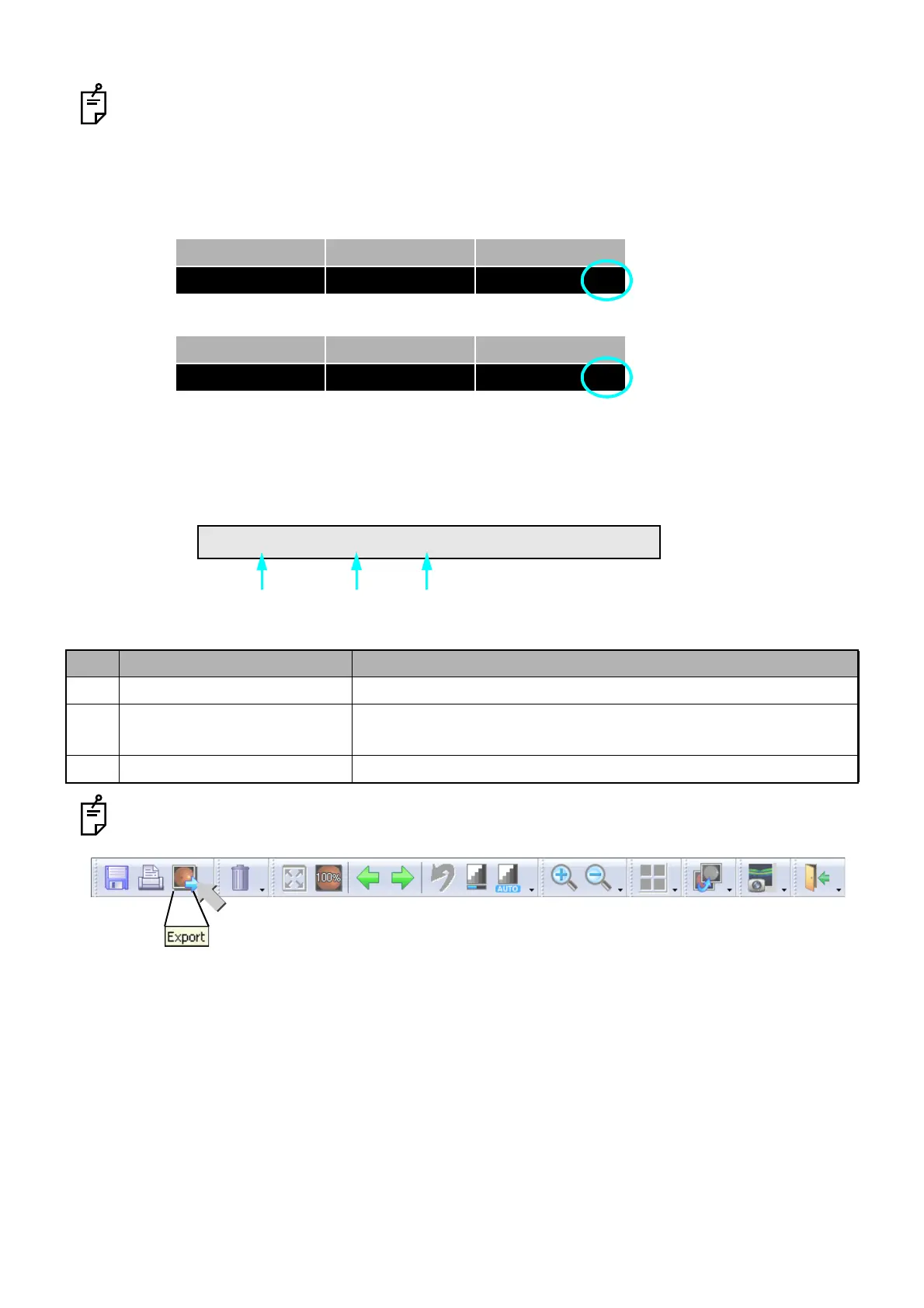

51
CAPTURING TOMOGRAMS
When any image is reserved for deletion, "Shot" displays "Count of images without reserve for
deletion/All images". When "Hide deleted images" is set, the count of other images except those
reserved for deletion is displayed.
Example:
When three pictures in color are taken and two images are reserved for deletion:
• When "Hide deleted images" is set
• When "Hide deleted images" is not set
2.6.8. C-8 Status bar
When the cursor is in the fundus image display area, the following information is displayed.
When the cursor is on the menu icon, the function of the icon is displayed.
Capture Mode Timer Shot
Color 1
Capture Mode Timer Shot
Color 1/3
No. Information Contents
(1) Image size Length × Width
(2) Mouse cursor coordinate The upper left corner is the origin (0, 0) in real size. When the
cursor is not in the fundus image display area, (-, -) is displayed.
(3) Image magnification ratio Displayed by "%".
2188×2136 (569,1436) 40%
(1)
(2) (3)
