164
ANALYZING TOMOGRAMS

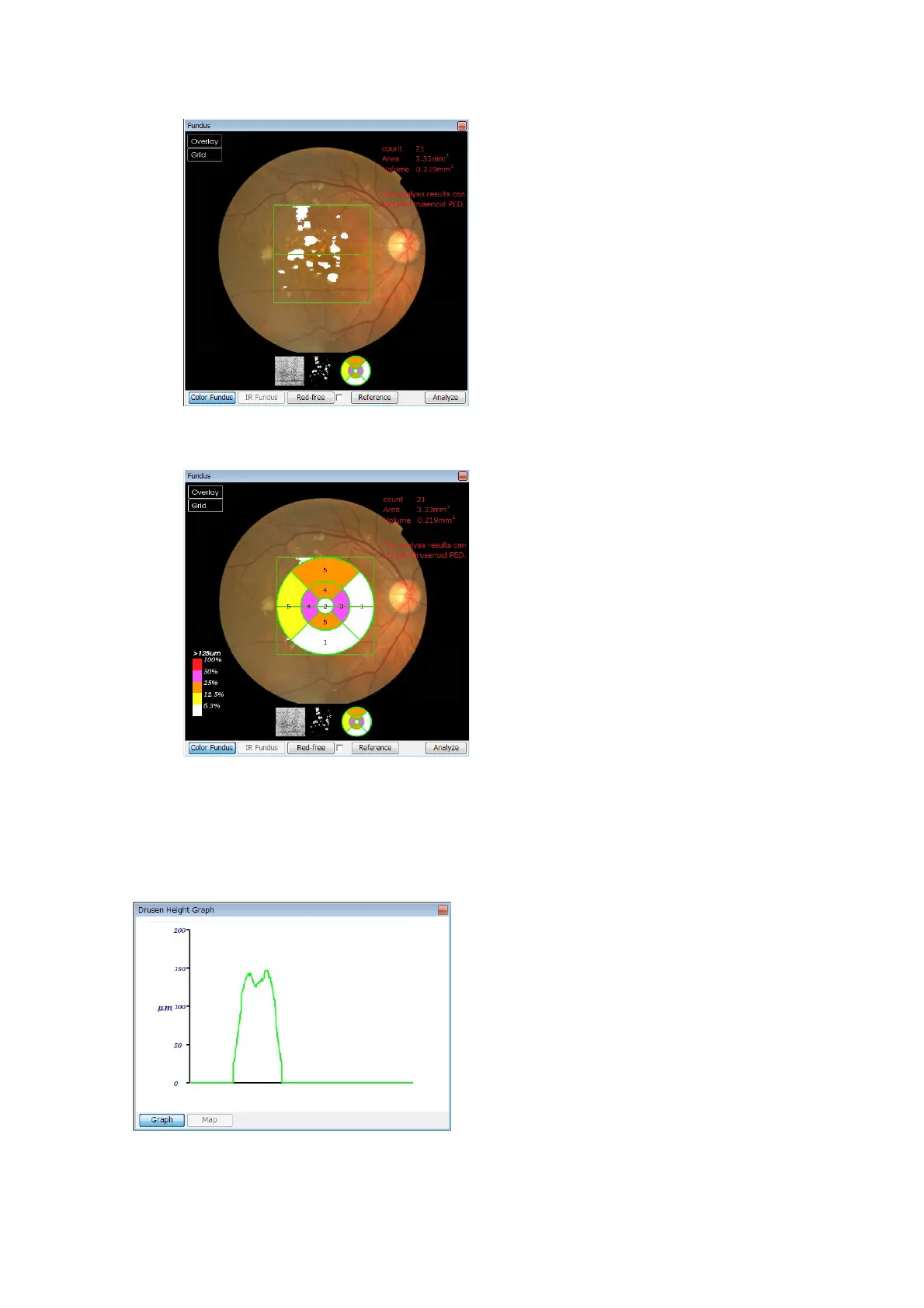

Fundus/anterior segment image display area
In the upper right, the number, the total area and the total volume of the detected drusen are displayed.
Turn on "Drusen" in the menu "Overlay", and the detected drusen are overlaid on the fundus image.
Turn on "ETDRS" in the menu "Grid", and the number of drusen in each grid is displayed and the ratio
between the total area of drusen in a grid and the area of the grid is displayed with the color in the legend
placed in the left.
Thickness Graph Area
Drusen height graph is displayed in the Thickness Graph Area.
