Fuel System (continued)
Removing the Fuel Pump

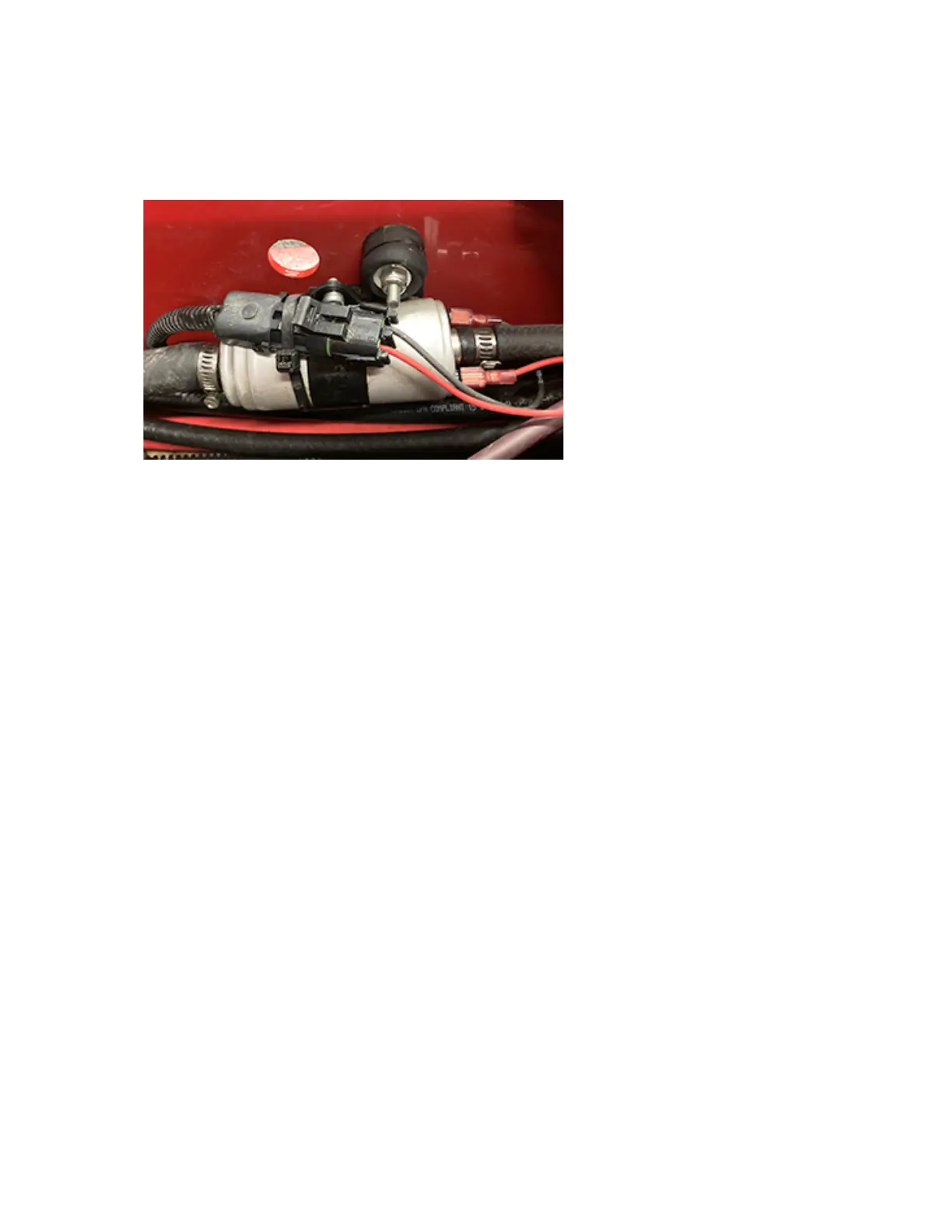

Figure 11
G452226
1. Remove all attachments from the machine.
2. Park the machine on a level surface, engage the parking brake, and remove the
key from the ignition.
3. Switch the main circuit breaker to the O
FF position, to de-energize the electrical
system.
4. Turn the fuel shut-off valve to the O
FF position.
5. Remove the rear lower frame (tunnel) cover.
6. Disconnect the fuel pump harness connection.
7. Remove the fuel pump mounting bolts.
8. Disconnect the fuel hoses from the pump.
9. Remove the pump.
