10-23

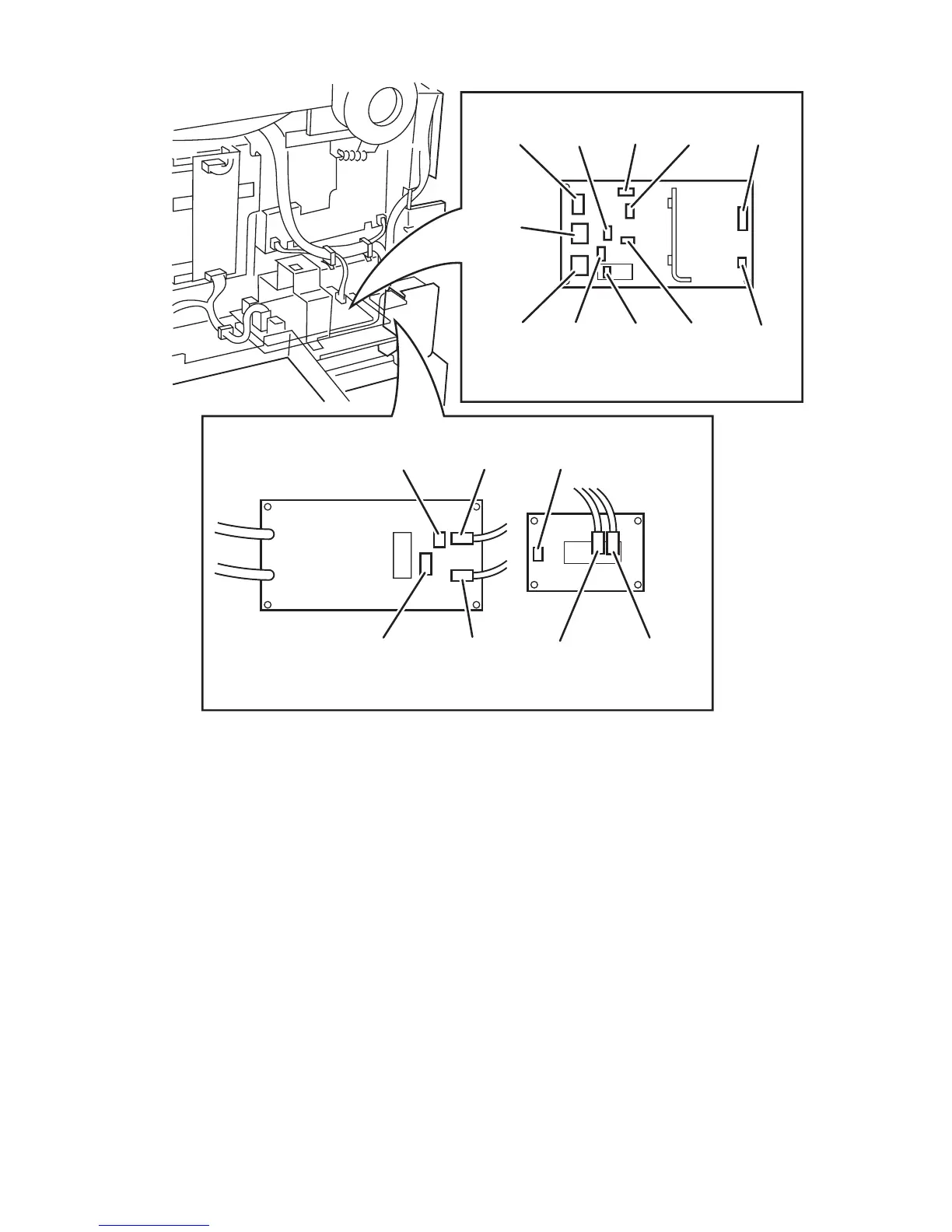

Map 18 - AC Drive, Noise Filter, and Delay Board
J70
FS76
P/J593
FS90
FS77
FS61
FS62
DELAY PWB
NOISE FILTER PWB
AC DRIVE PWB
P/J46
FS40
FS39
FS41
P/J590
P/J592
FS47
FS48
FS45
P/J42
P/J43
7750-079
