Theory of Operation 2-13
System Power Supplies

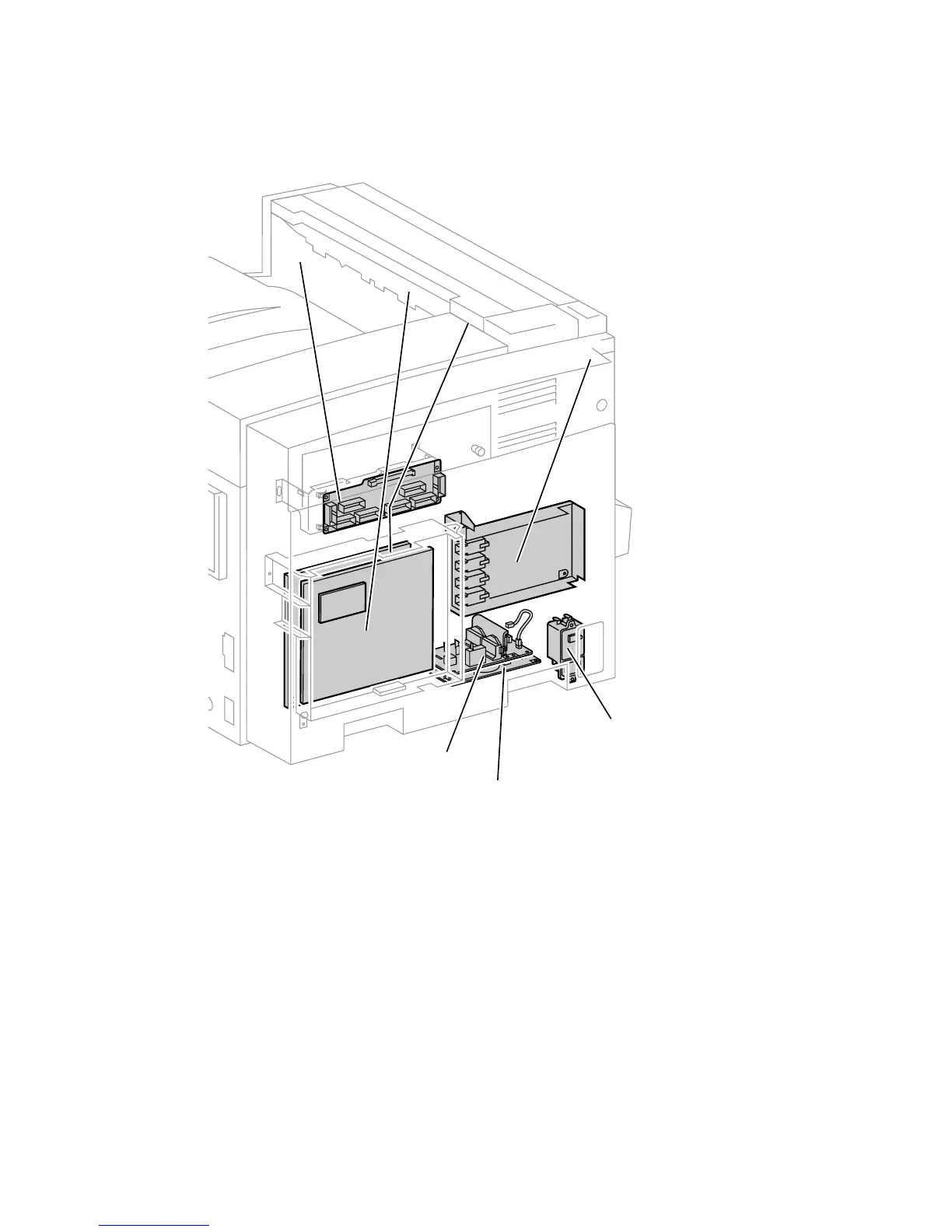

The System Power Supplies consist of: the T1, T2, and T3 HVPS, the 24 Volt LVPS,
3.3 VDC LVPS, and the (2) 5VDC LVPS.
High Voltage Power Supply/ T2 Board
AC Drive Board
Noise Filter Board
GFI
High Voltage Power Supply/ T3 Board
High Voltage Power Supply/ T1 Board
Engine Control Interface Board
S7700-317
