PL 17.3 Horizontal Transport Assembly: 1 of 2

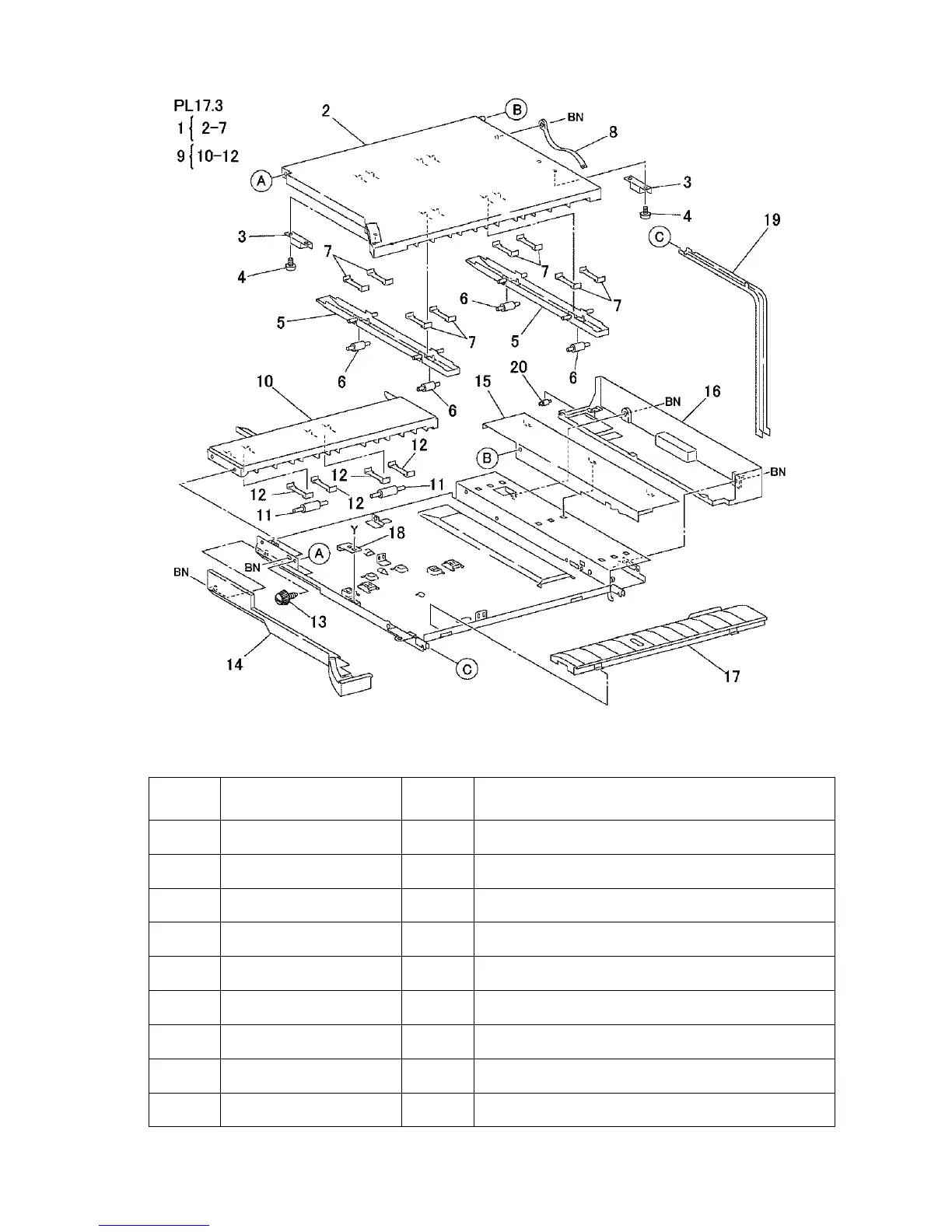

H-Transport Assembly: 1 of 2 PL 17.3
No. Part Number Qty Description
1
116-1290-00 H-Transport Cover Assembly
3
116-1291-00 Magnet
4
Screw
6
116-1246-00 Roll
9
116-1289-00 Entrance Upper Cover Assembly
13
116-1821-00 Thumbscrew
14
116-1259-00 Front Cover
15
116-1261-00 Upper Rear Cover
16
116-1263-00 Rear Cover
