Sensor
1. Remove the horizontal transport top open and front cover, see page 11-12.
2. Remove the 2 screws securing the horizontal transport entrance upper cover, see
page 11-13

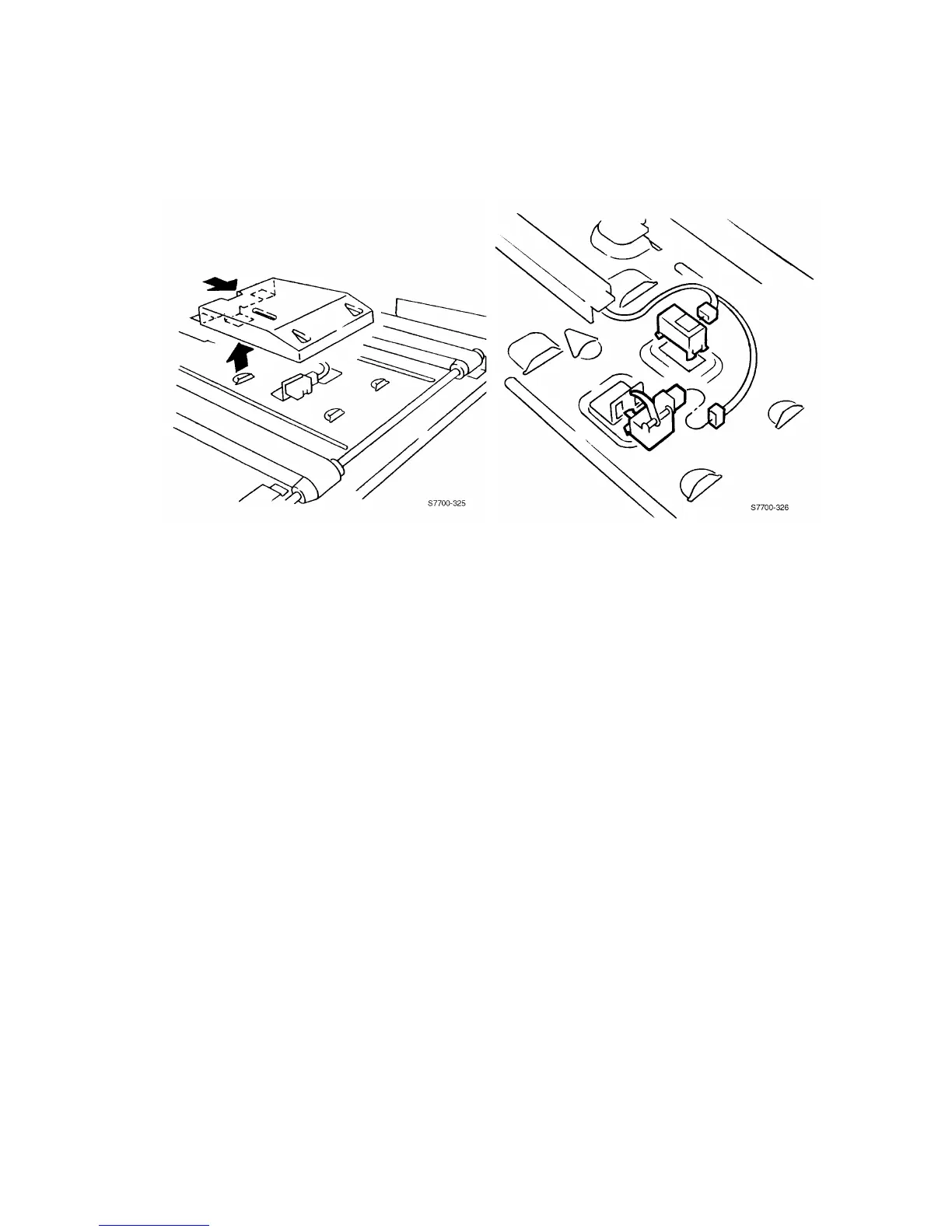

3. Remove the entrance sensor cover, pry up on the locking tab while pressing
firmly towards the entrance end of the transport.
4. Disconnect the wiring harness connector.
5. Press down on the two locking tabs located at the top of the sensor, press up on
the two locking tabs at the bottom of the sensor and remove the sensor.
Top Tray Sensor
1. Disconnect the wiring harness.
2. Remove 1 screw and remove the sensor bracket and sensor.
Note
When replacing the sensor be sure the harness guide is engaged into the cover.
To Next Page
