Xerox 7750DXF - Phaser Color Laser Printer - Part List 8.1 Air System

9-30 Phaser 7750 Printer Service Manual
Part List 8.1 Air System

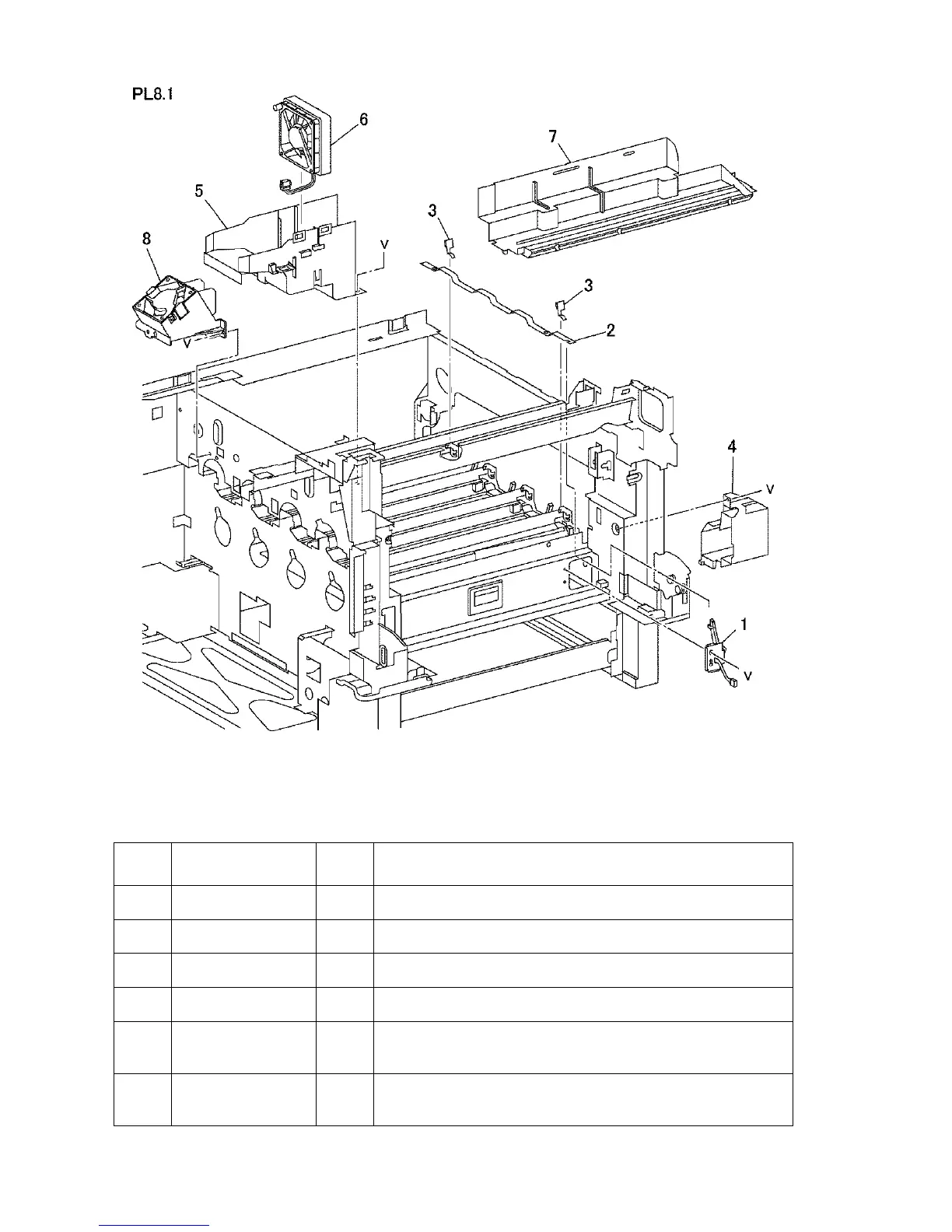

Air System PL 8.1
No Part number Qty Part Description and (part name)
1
116-1788-00 Laser Shutter Motor
4
116-1789-00 LH Lower Inner Cover (COVER-INNER, L/H, LOW)
6
116-1176-00 Fuser Fan Assembly (FAN ASSY FUSER)
8
116-1790-00 Laser Fan (FAN ASSY (ROS))
9
116-1831-00 Developer Cooling Fan (Not Shown)
Location: Inside Rear Cover
10
116-1833-00 Bottom Fan (Not Shown)
Location: Underneath Power Supplies
s7750-376
