Service Parts Lists 9-41

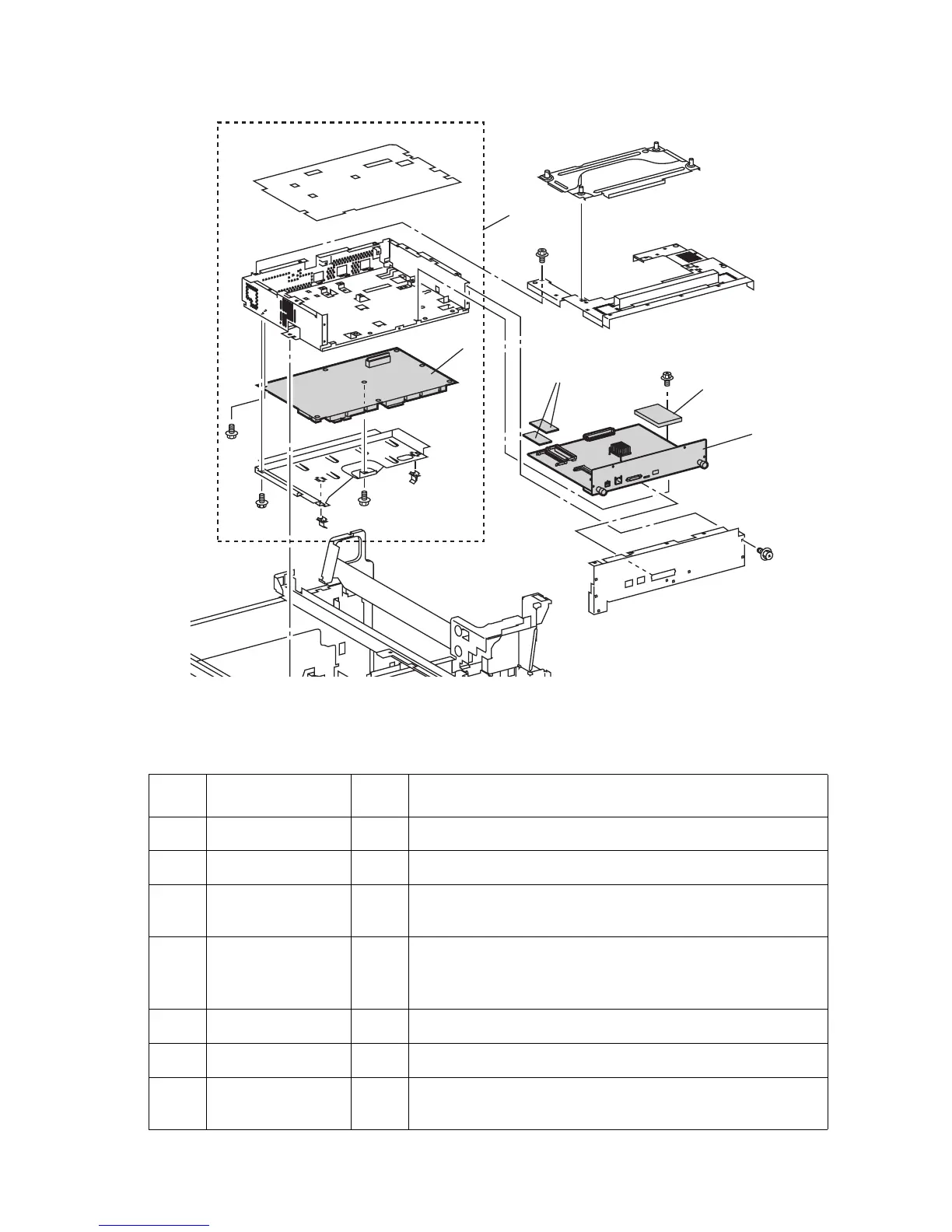

Part List 13.1 Image Processor and Engine Control
Boards
Boards PL 13.1
No Part number Qty Part Description and (part name)
1
116-1812-00 Chassis Assembly (w/o Engine Board)
2
116-1811-00 Engine Control Board (PWB MCU)
3
650-4306-00
671-5316-80
Image Processor Board
4
156-4837-00
156-4663-00
156-4857-00
128 MB RAM SODIMM
256 MB RAM SODIMM
512 MB RAM SODIMM
5
650-4311-00 Internal Hard Drive
6
116-1836-00 Not Shown - Electrical Chassis Cooling Fan
7
163-1506-00
163-1507-00
Cofiguration Chip Base
Configuration Chip Network
7750-470
2
1
3
5
4
