11-16 Phaser 7750 Printer Service Manual

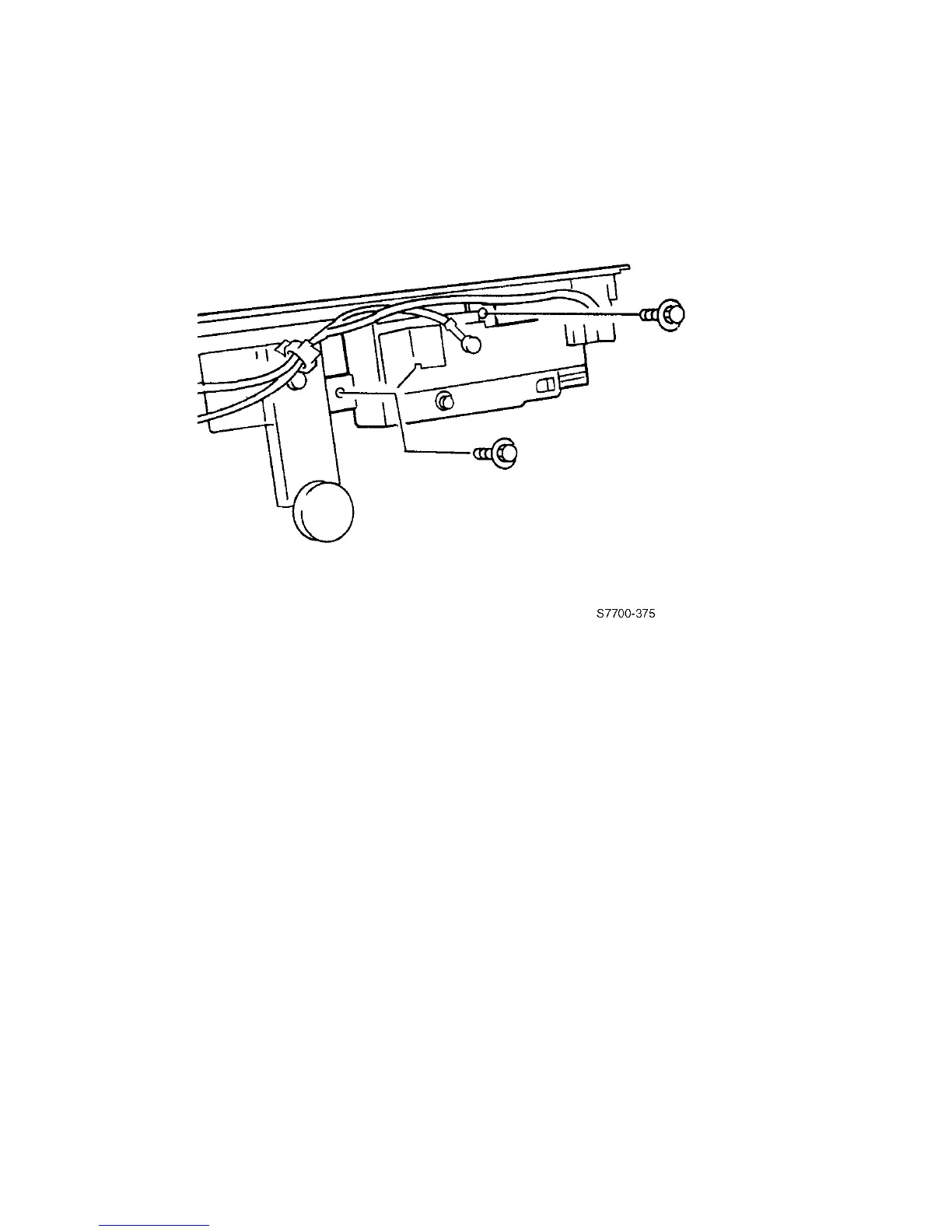

Gate-In Solenoid Assembly
1. Remove the Rear Cover.
2. Disconnect the ground wire from the solenoid housing.
3. Remove the 2 screws securing the Gate-In Solenoid Assembly and remove.
