Adjustments and Calibrations 6-3
Coarse and Fine Skew Adjustments
Skew error is the misalignment of one or more of the four scan lines (C, M, Y & K).
During the RegiCon #4 (Coarse) and RegiCon #1 (Fine) adjustments, the front side of
each line is adjusted to be level with the rear end.
In/Out Skew Adjustment
The In/Out Skew Adjustment (Magnification) ensures that all four scan lines are the
same length. During RegiCon #2, the printer measures, then adjusts the four scan
lines to the proper length.

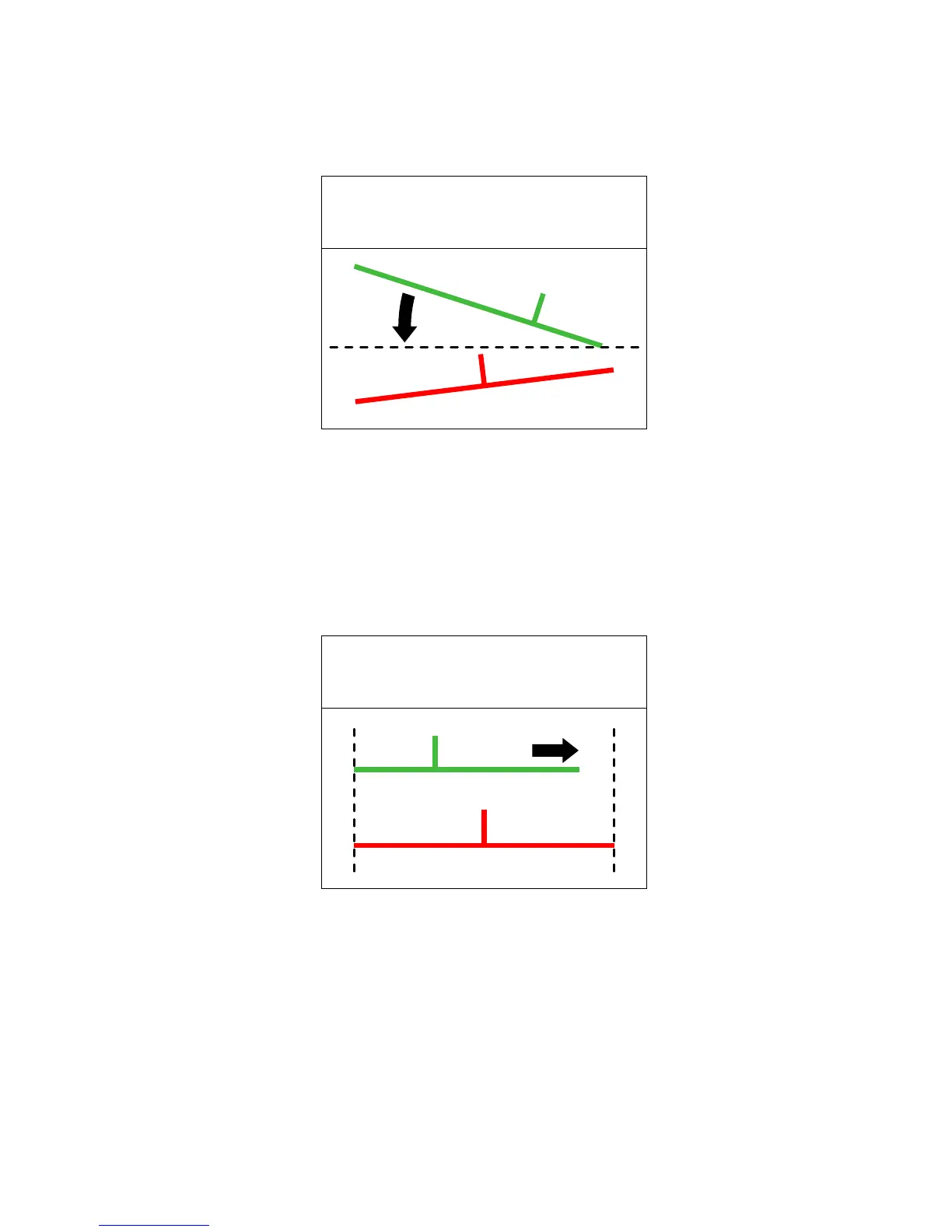

Figure 2: Skew Adjustment
S7700-461
Reference Line
Figure 3: Magnification
S7700-462
To Next Page
