8-12 Phaser 7750 Printer Service Manual
Replacement Procedure
Note
Reinstall the door on the hinge pins and manually align the marks on the
motion damper before completing the installation. Failure to align the gears
can result in binding and gear damage.
.

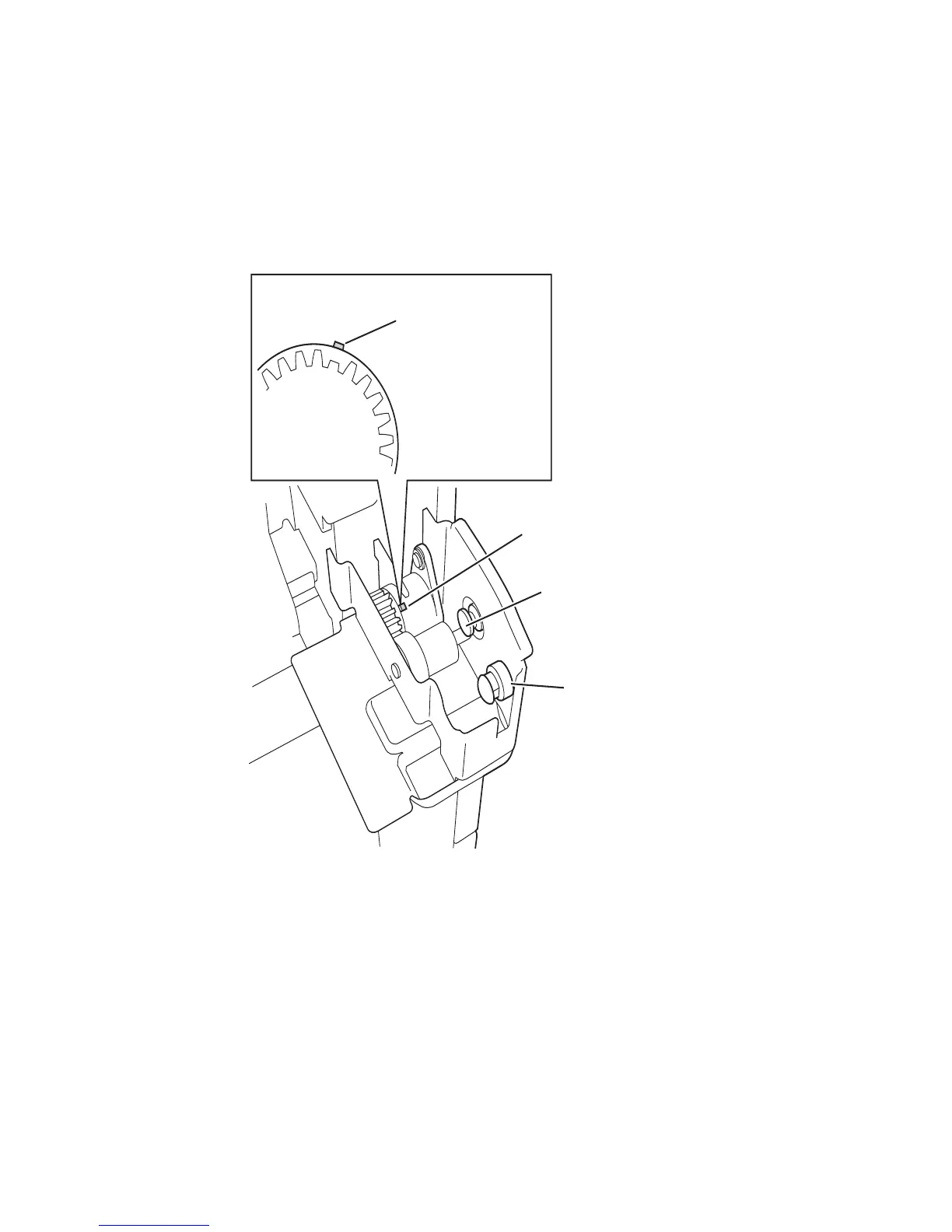

WHEN REASSEMBLING,
ALIGN THE MARKS ON
THE FRICTION DAMPER.
7750-016
Marks on
Motion Damper
Stop Pin
Hinge Pin
