9-48 Phaser 7750 Printer Service Manual
Part List 16.16 Lower Tray Deck

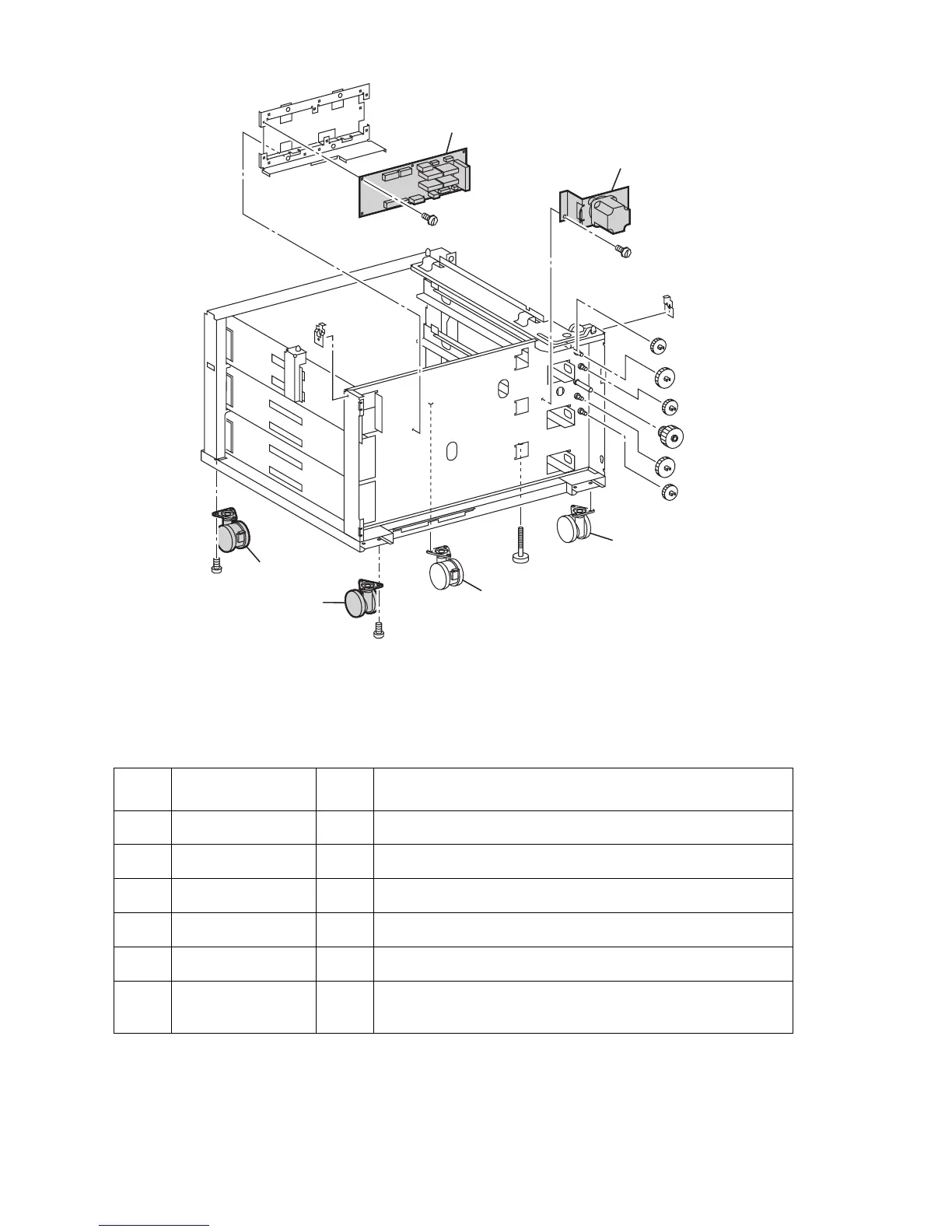

Lower Tray Deck PL 16.16
No Part number Qty Part Description and (part name)
1
116-1814-00 Tray 3 Module Motor Assembly (MOTOR ASSY-3TM
2
116-1813-00 LTD Circuit (control) Board (TRAY MODULE PWB)
3
116-1206-00 Caster, Locking (CASTER ASSY-S)
4
116-1221-00 Caster (CASTER ASSY)
5
Paper Select Switch
6
116-1184-00 LTD Module Cover (COVER ASSY LH 3TM)
NOT SHOWN
1
4
3
4
3
7750-472
2
