11-29

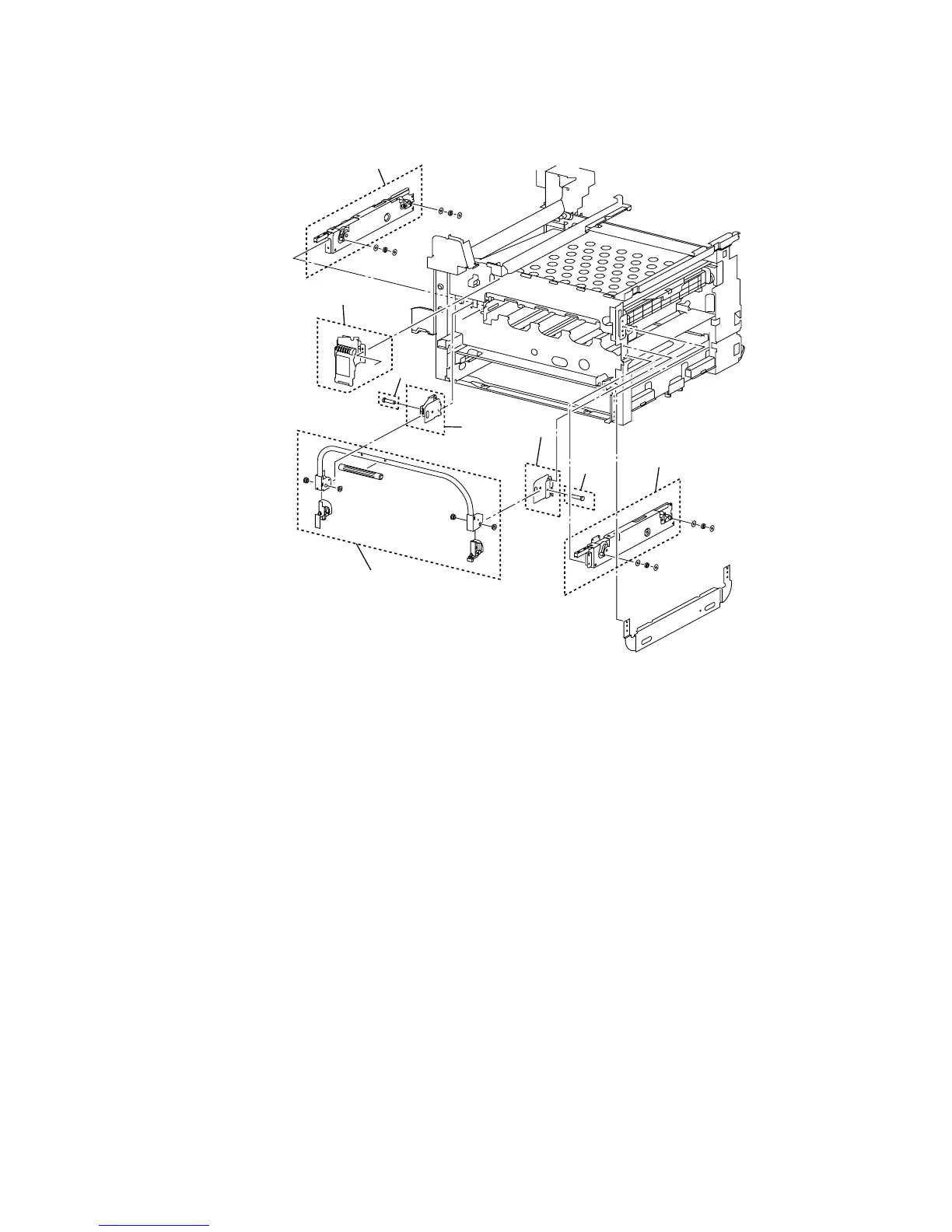

Staple Unit Assembly and Motor
Staple Unit Assembly
1. Remove the front cover, see page 11-17.
2. Remove the 2 connectors to the staple unit.
3. Remove 2 screws, note: one screw has a ground wire.
4. Pull the staple unit assembly down, tilt up and pull out towards the front.
Staple Motor
1. Remove the staple unit assembly.
2. Remove the right cover.
3. Disconnect the wiring harness.
4. Remove 2 screws and remove the motor.
S7700-050
1
6
V
4
5
3
6
7
2
