Service Parts Lists 9-35

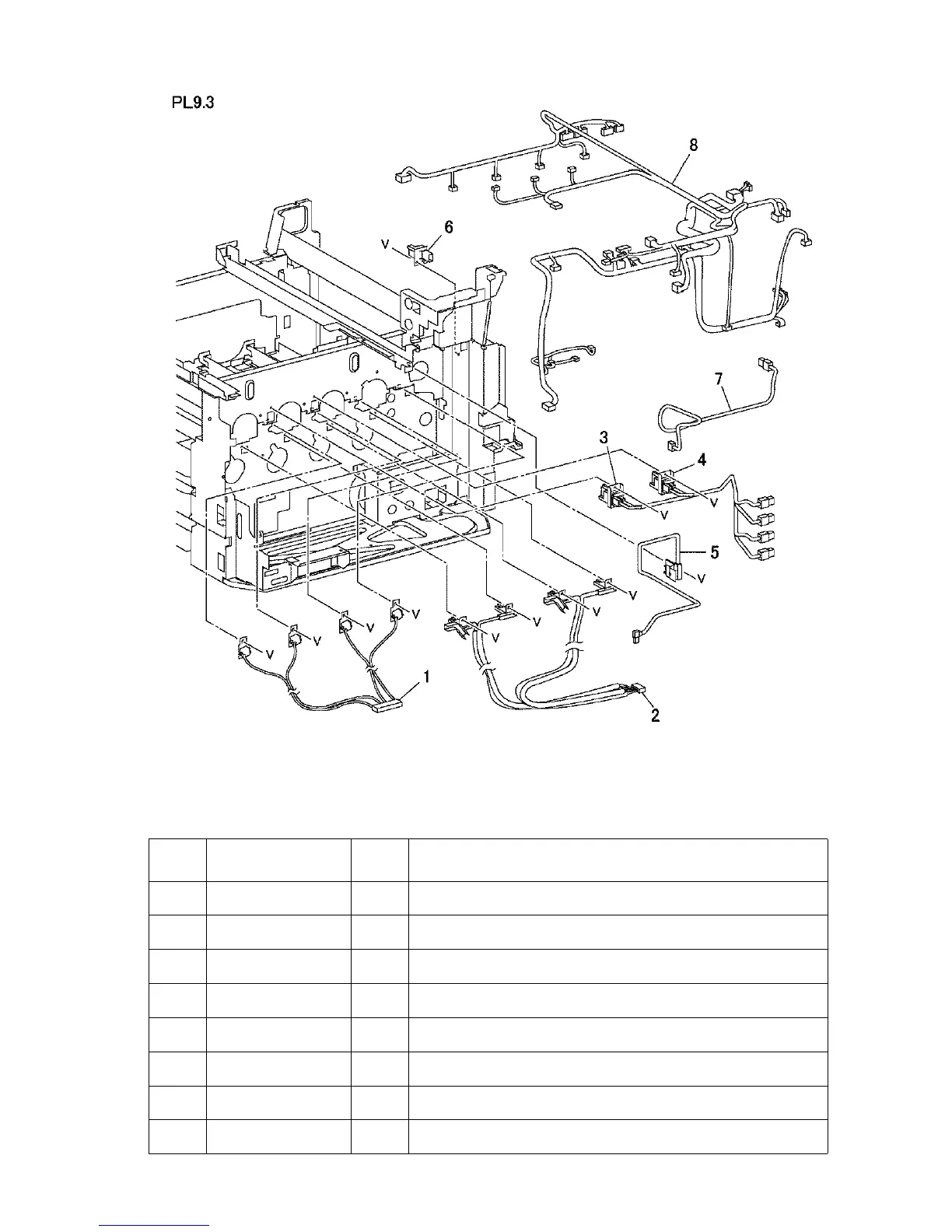

Part List 9.3 Electrical Components: 3 of 3
Electrical Components: 3 of 3 PL 9.3
No Part number Qty Part Description and (part name)
1
116-1223-00 Developer Block
2
116-1312-00 Wire Harness
3
116-1307-00 Wire Harness Y, M
4
116-1308-00 Wire Harness C, K
5
116-1913-00 2nd Wire Harness
6
116-1306-00 DTS Connector
7
116-1310-00 DTS Wire Harness
8
116-1799-00 DC Wire Harness
s7750-379
