11-12 Phaser 7750 Printer Service Manual
Horizontal Transport Top Open, Front, and Rear Cover

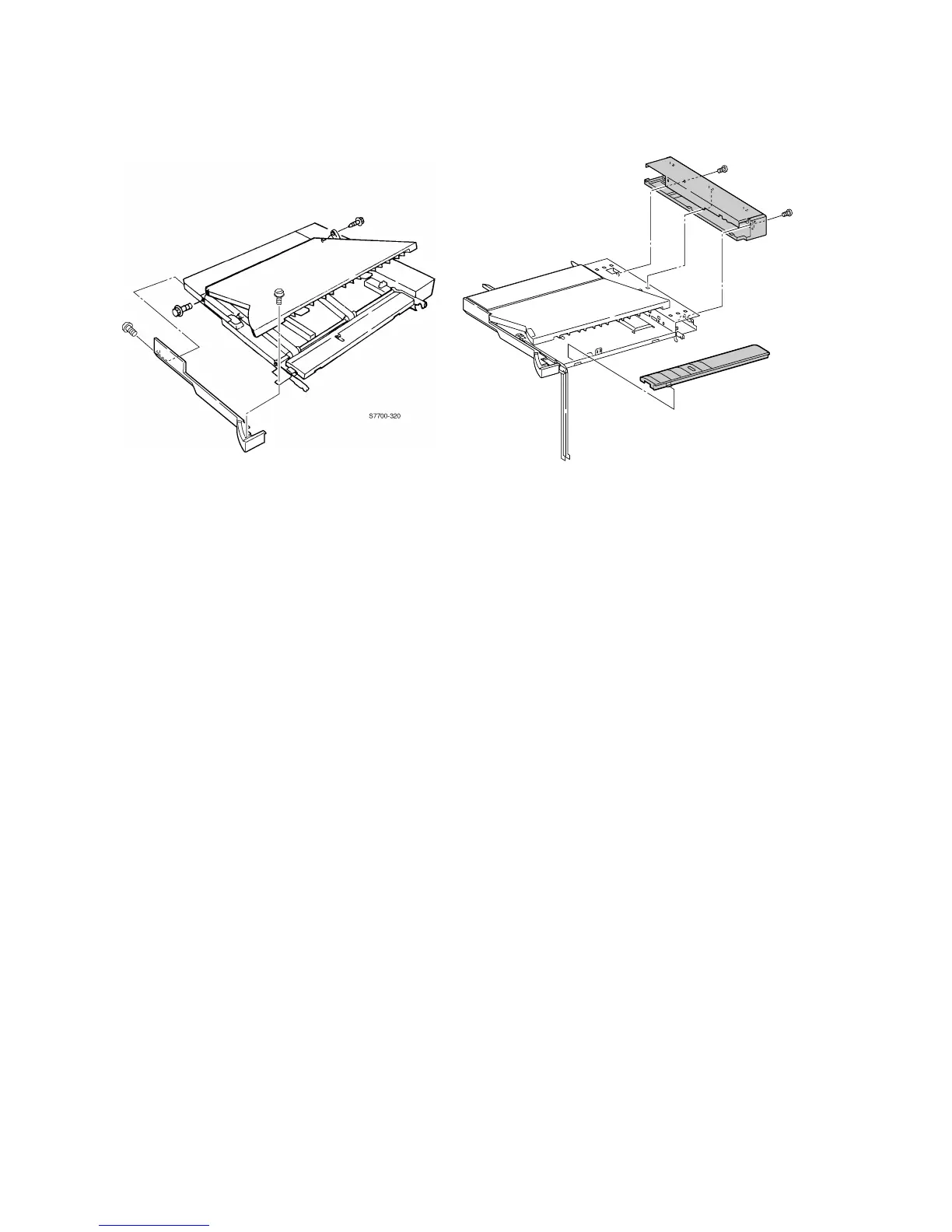

1. Remove the horizontal transport assembly, see page 11-11.
2. Remove 1 screw securing the stopper.
3. Remove 2 screws from the horizontal transport front cover and remove the cover.
4. Remove the hinge screw and remove the top open cover.
5. Remove 2 screws securing the horizontal transport rear cover.
6. Remove the horizontal transport entrance upper cover assembly.
7. Remove the horizontal transport exit guide by pressing on the tabs on the lower
right edge of the horizontal transport frame.
8. Remove the upper rear cover.
S7700-452
