11-20 Phaser 7750 Printer Service Manual
Stacker Paper-Sensor Assembly
1. Loosen the thumb screw and remove the stacker tray.

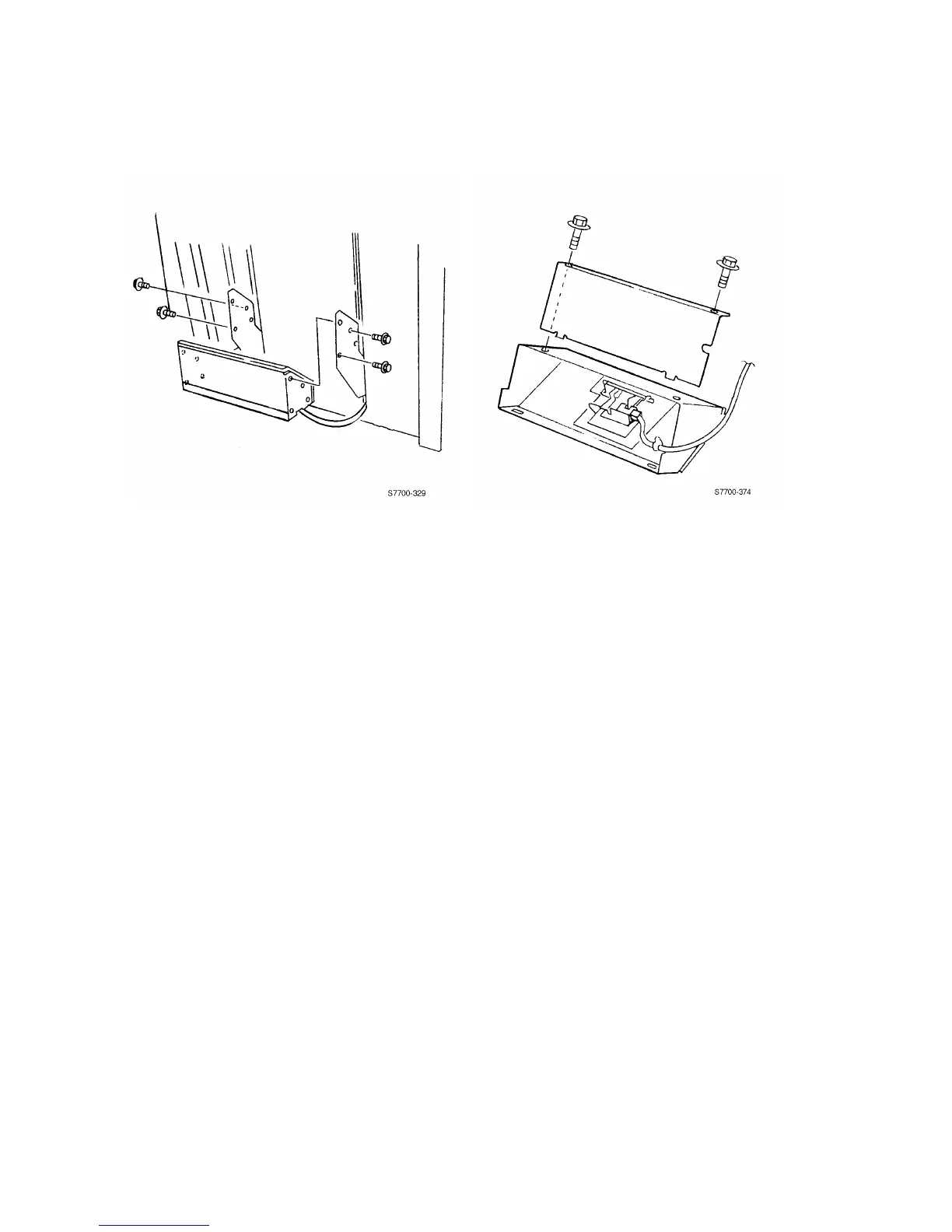

2. Remove the 4 screws securing the stacker paper sensor assembly to the finisher.
3. Remove 2 screws from the bottom of the assembly.
4. Remove 1 screw on the sensor bracket.
5. Press down on the two locking tabs located at the top of the sensor, press up on
the two locking tabs at the bottom of the sensor and remove the sensor.
6. Remove the connector from the sensor.
