Repeating Defects Page
The “Repeating Defects Page” provides a measurement tool that allows you to match
the spacing between repeated defects on the printed pages with the component that
would cause such spacing to occur. Instructions for using the Repeating Defects Page
are printed on the page.
Remove Print Smears
Selecting “Remove Print Smears” causes the printer to cycle blank paper through the
printing path. continue selecting this function until the paper comes out clean.
Page1of1

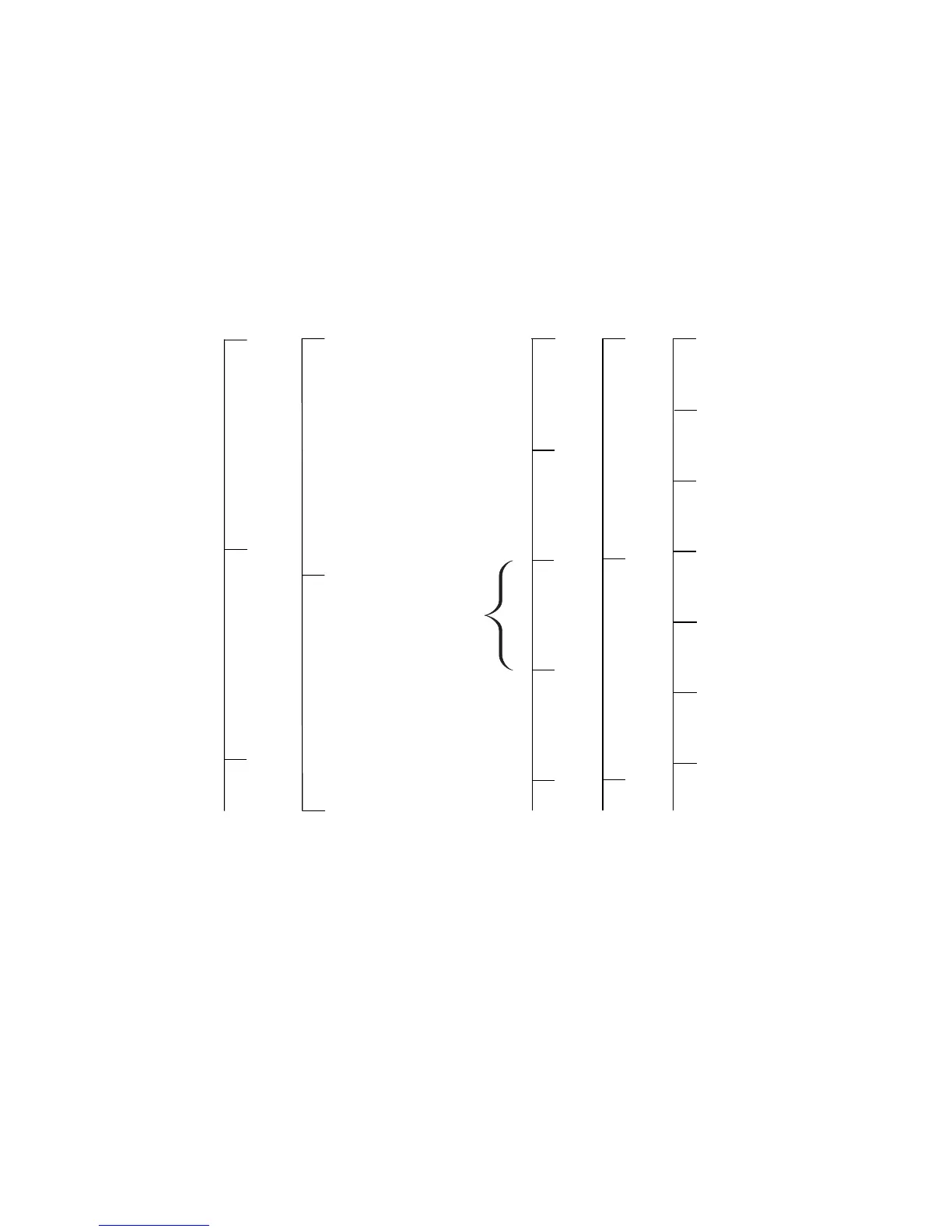

Match a set of repeating defects
in your print to the corresponding
marks on the appropriate vertical
line. This line indicates the item,
such as the transfer roller,
causing the defect.
For example, the distance
between these two marks
represents a defect repeating
every 44 mm; this is caused
by an imaging unit. When
correcting a repeating defect
by replacing a routine
maintenance item, follow
the instructions included with
the routine maintenance item.
Note: The repeating defect
must be measured accurately
to ensure the correct item is
replaced.
Fuser
84 mm (3.3 in.)
Fuser or
Imaging Unit
94 mm (3.7 in.)
28.3 mm (1.1 in.)
44 mm (1.7 in.)
Transfer Roller
88 mm (3.5 in.)
Developer Roller
(service only)
Imaging Unit
To diagnose a defect on the
accumulator belt:
1. Print eight A-size pages
long-edge feed.Verify that
the same defect appears on
every fourth page.
2. Print four B-size pages.
Verify that the same defect
appears on every other page.
Note: Print the Supplies Usage
Page for part numbers.
