9-38 Phaser 7750 Printer Service Manual
Part List 10.3 Rear Cover

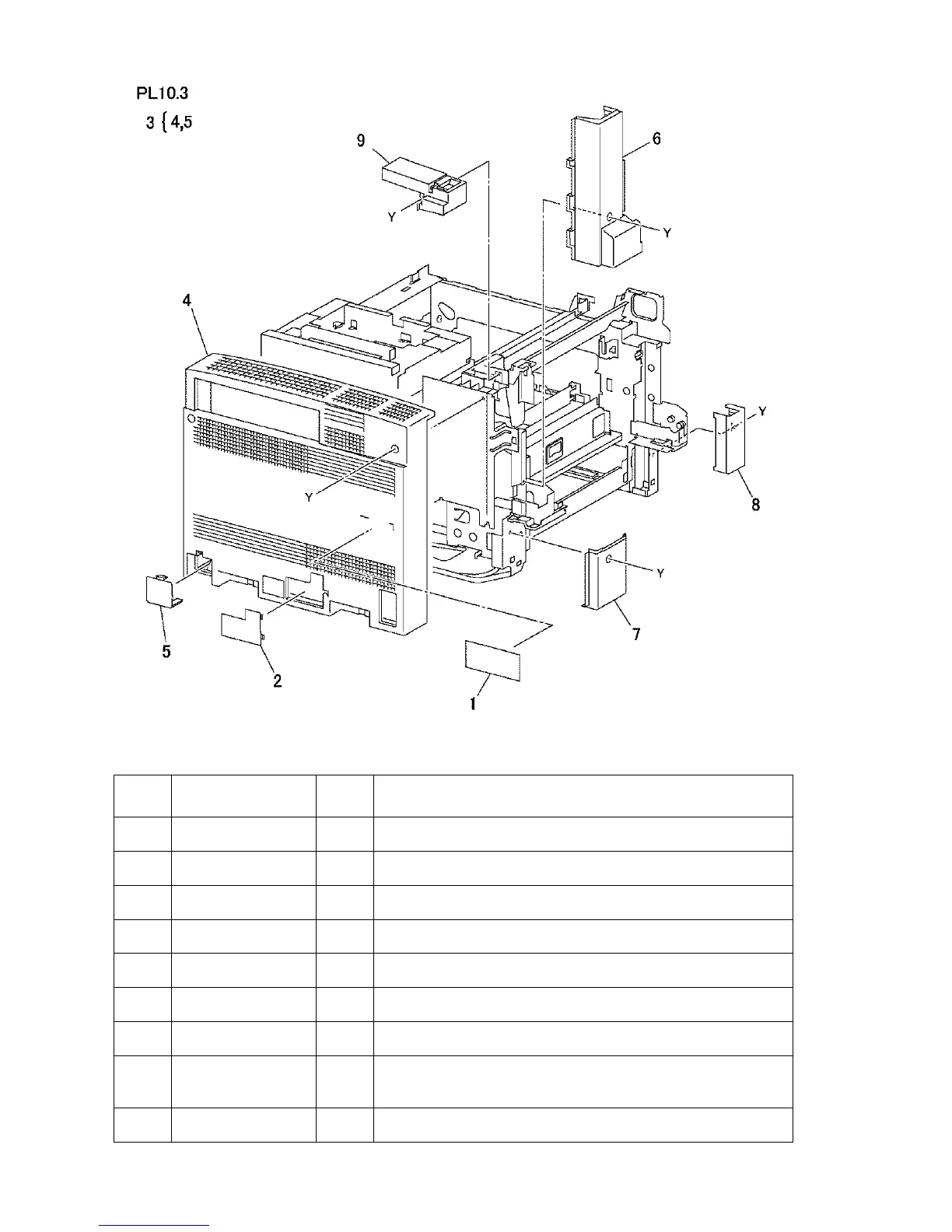

Rear Cover PL 10.3
No Part number Qty Part Description and (part name)
1
Data plate N/S
2
Blind Cover
3
116-1954-00 Rear Cover Assembly (COVER ASSY REAR)
4
Rear Cover {p/o item 3}
5
116-1188-00 Lower Tray Unit Harness Cover (COVER BLIND TM)
6
116-1189-00 Left Hand Rear Middle Cover (COVER-L/H R,MID)
7
116-1191-00 Left Hand Rear Lower Cover (COVER-L/H R,LOW)
8
116-1914-00 Left Hand Front Lower Cover (COVER AY-L/H F, LOW
MN)
9
116-1808-00 Top Rear Cover (COVER-TOP, REAR)
s7750-382
