11-25

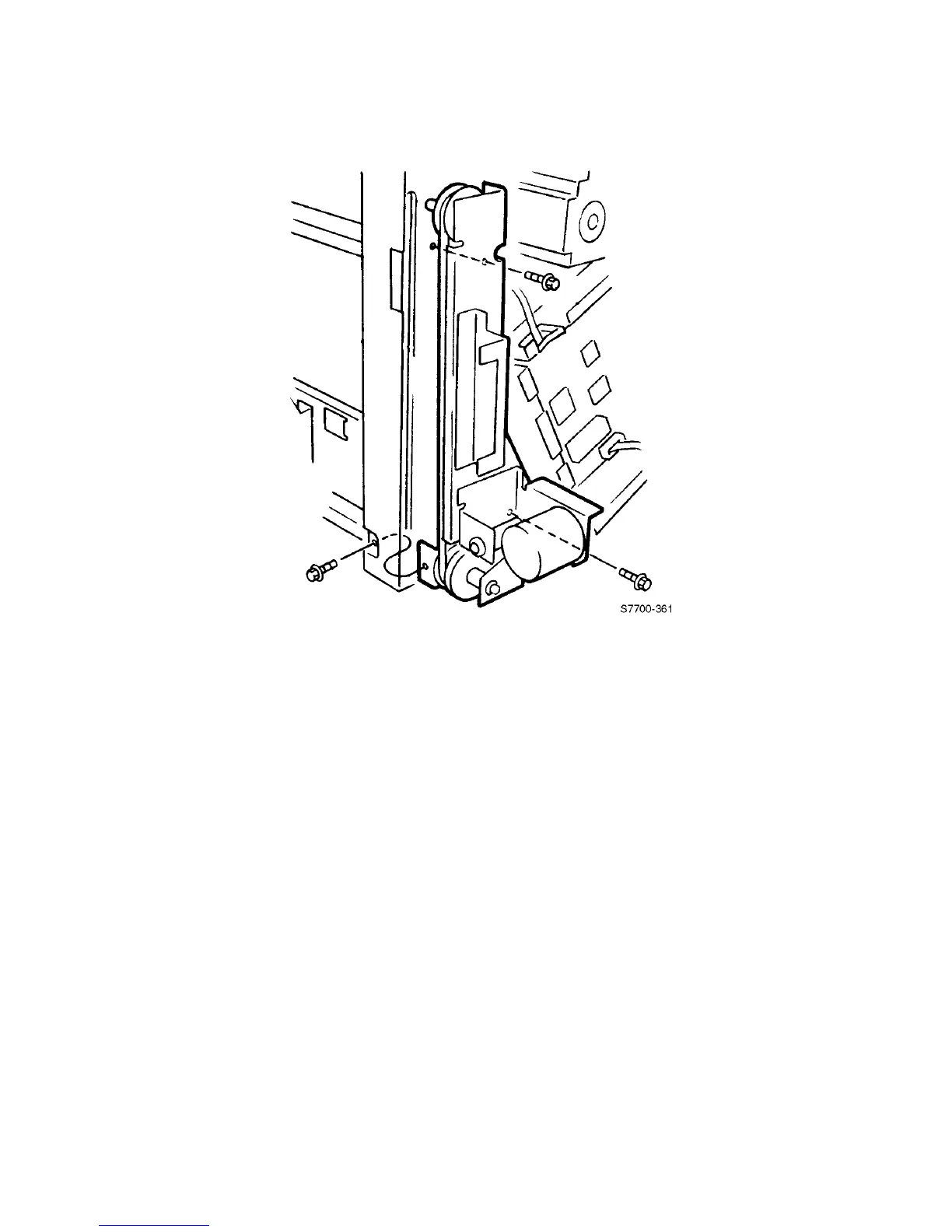

Stacker Motor Assembly
1. Remove the finisher control board bracket, and shield, see page 11-23.
2. Remove 1 connector.
3. Remove 3 screws securing the stacker motor assembly and remove.
Note
When reinstalling, ensure the gear is engaged and the sensor for the stacker is
tripped.
