11-27

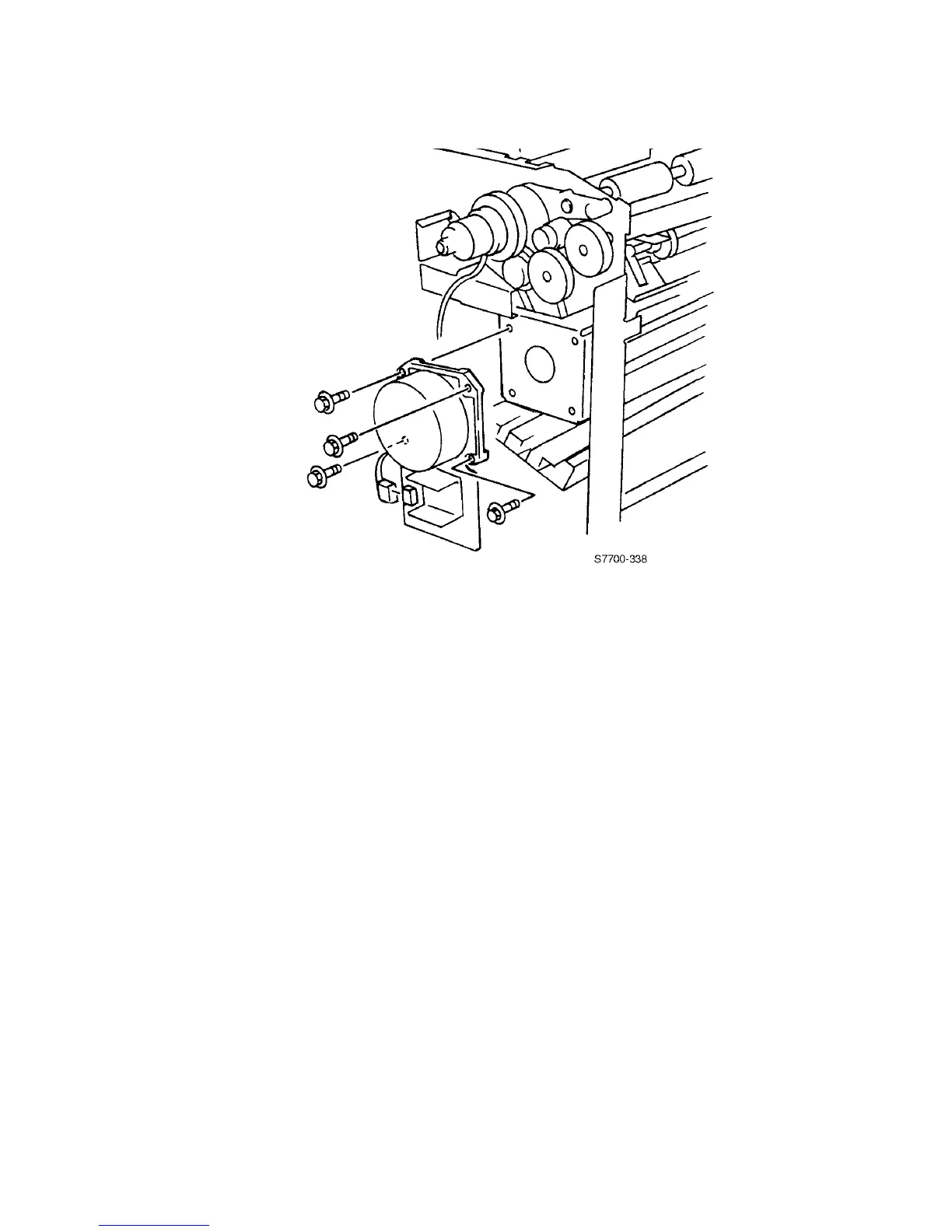

Paper Transport Motor (Motor Assembly Main)
1. Remove the Rear Cover, see page 11-17.
2. Remove 4 screws.
3. Undo the connector and lift the motor up and then out to free the belt.
