11-21
Set Clamp Clutch and Gear
1. Remove the rear cover, see page 11-17.
2. Remove the set clamp actuator.
3. Remove 1 screw from the set clamp actuator retainer and remove.
4. Remove the clutch collar and clutch.
5. Remove the gear.

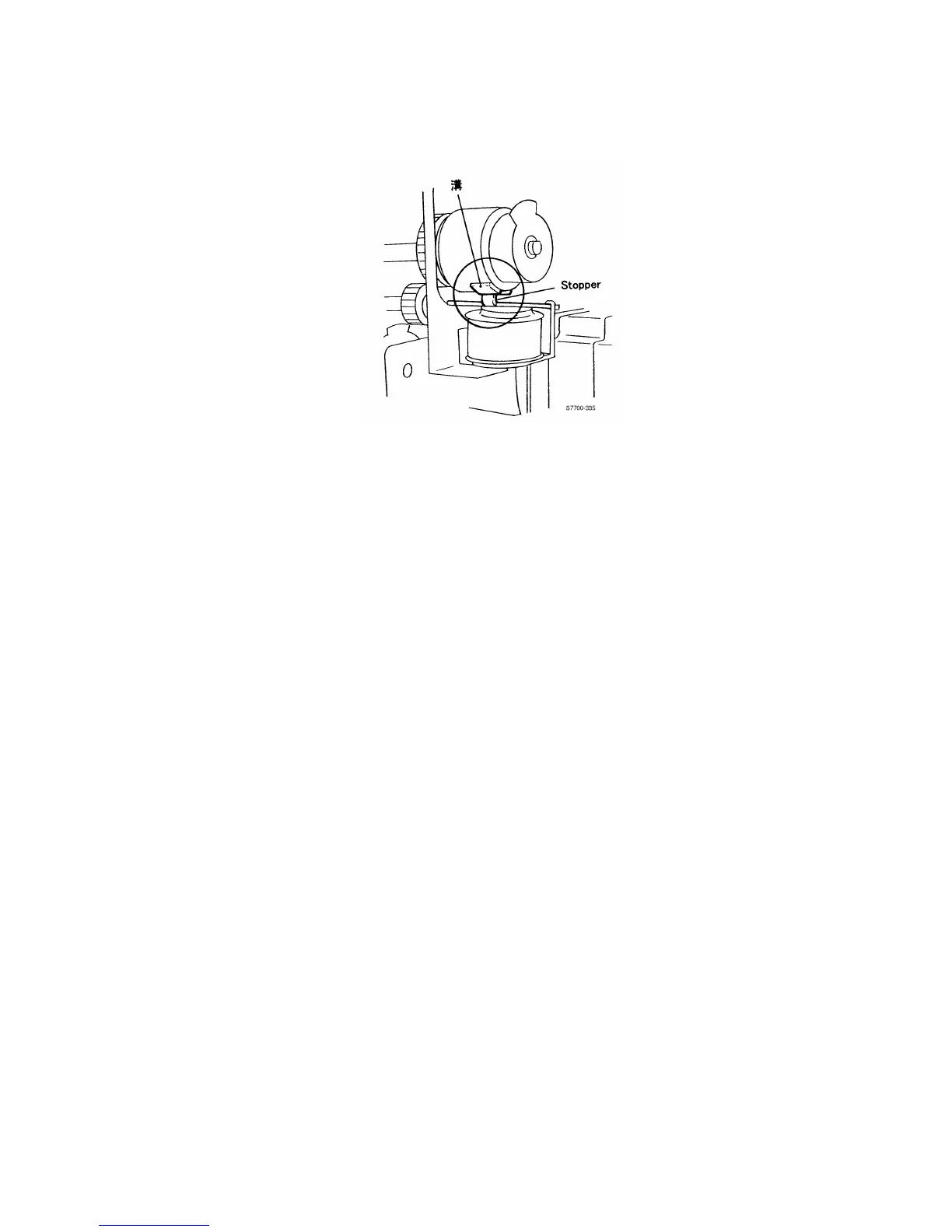

Note
When replacing, after installing the clutch collar you need to depress the clutch
solenoid and rotate the set clamp shaft 1/4 revolution Counter-Clockwise. Then
install the set clamp actuator. Then rotate the clutch until the solenoid snaps into
position.
