11-28 Phaser 7750 Printer Service Manual

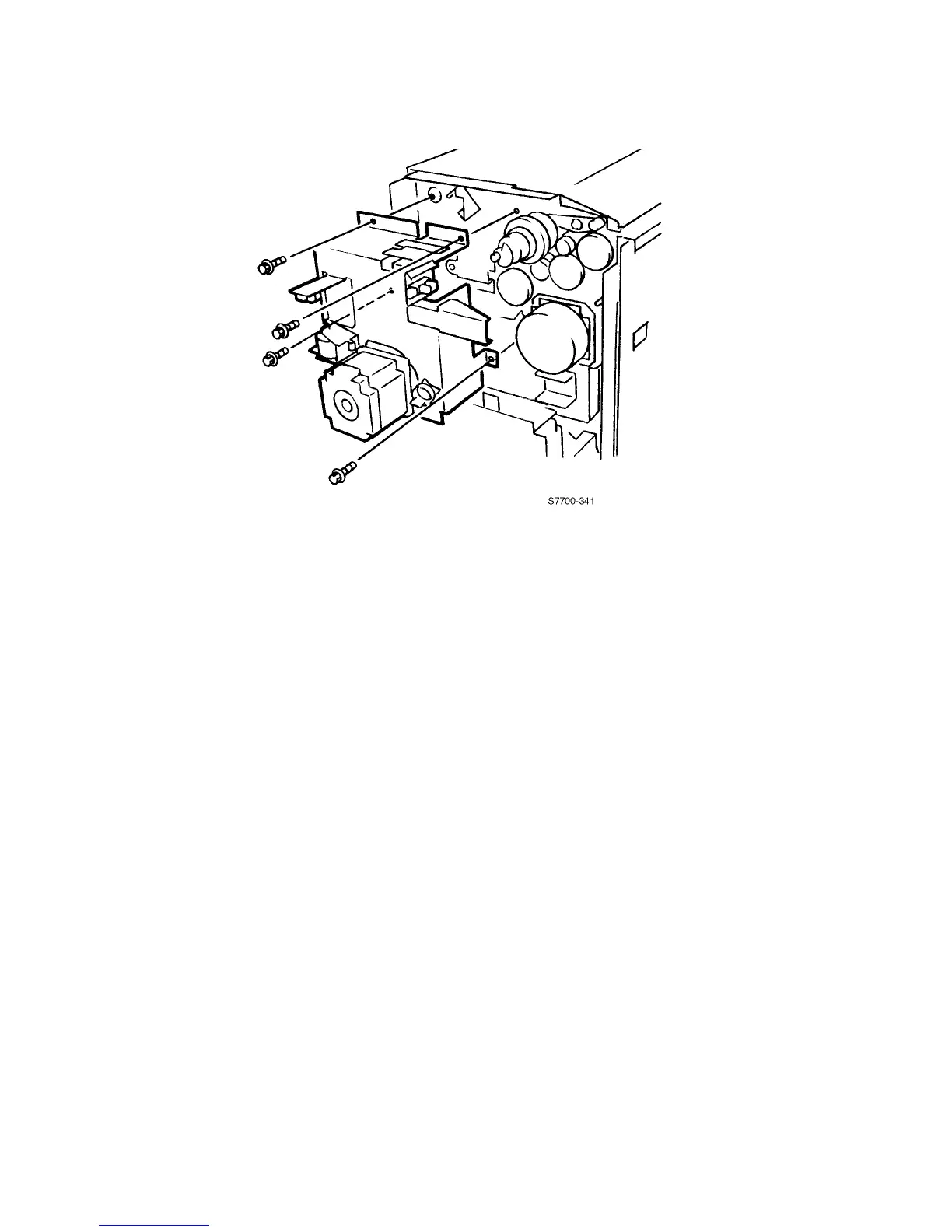

Cam Bracket Assembly
1. Remove the rear and top covers, see page 11-17.
2. Remove 1 screw securing the decurler cam sensor.
3. Remove 1 screw from the eject clamp home sensor.
4. Disconnect the wiring harness from the set clamp home sensor.
5. Remove the wiring harness from the bracket.
6. Disconnect the wiring harness from the eject motor.
7. Remove 4 screws from the bracket and remove the cam bracket assembly.
Note
When reinstalling the cam bracket assembly the manipulate the eject assembly to
ensure the gears follow one another from the back of the cam bracket assembly.
Manually push the set clamps to engage the gears.
