Theory of Operation 2-17
RegiCon Overview
The RegiCon procedure is used to ensure that the four lasers in the ROS are correctly
aligned to provide correct registration for each color.

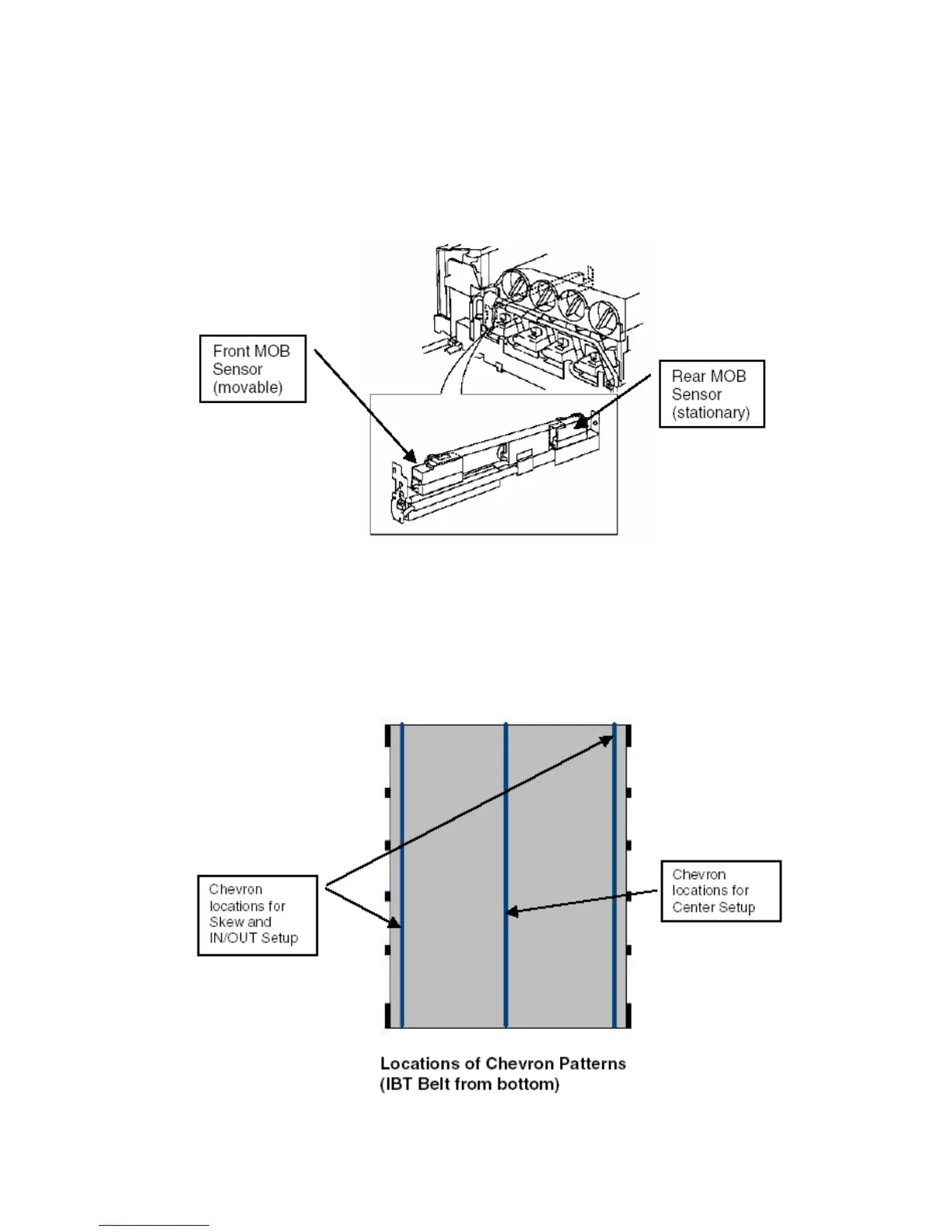

The Mark On Belt (MOB) sensors are used in this procedure to determine the relative
position of chevrons developed onto the accumulator belt.
The MOB sensors are located below the accumulator belt. The RegiCon procedures,
read chevrons on the front, rear, and center of the accumulator belt.
In the Center Setup procedure, the position of the front MOB sensor is changed to
allow it to read the chevrons developed on the center of the accumulator belt.
