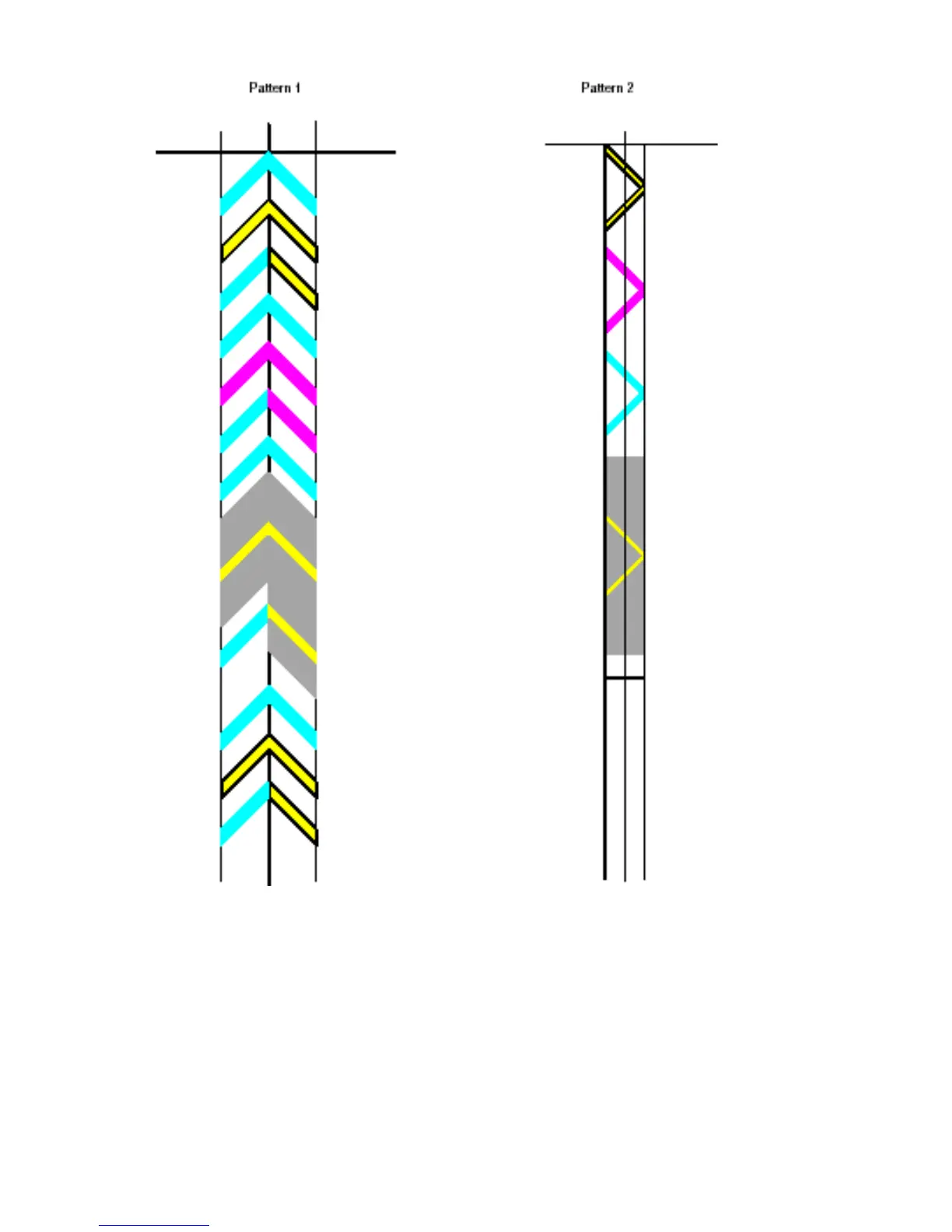

The chevron patterns used for the RegiCon setup are shown in the following figure.
The components of the RegiCon adjustment include:
■ Skew (Fine) Setup (Pattern 1)
■ IN/OUT Setup (Pattern 1)
■ Center Setup (Pattern 1)
■ Coarse Skew Setup (Pattern 2)
