11-22 Phaser 7750 Printer Service Manual

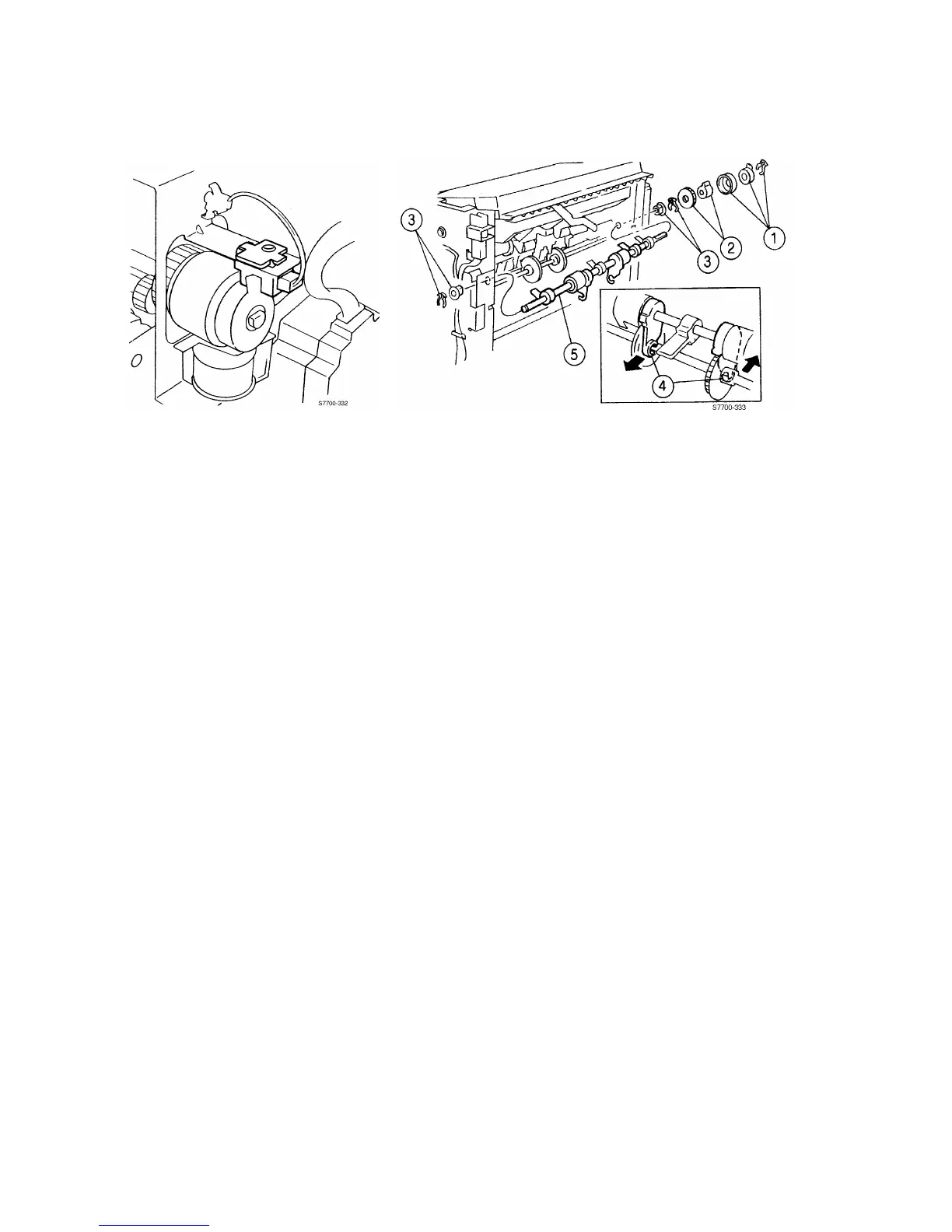

Eject Roll Assembly
1. Remove the rear and left covers, see page 11-17.
2. Remove sack paper sensor assembly, see page 11-20.
3. Undo the intermediate connector.
4. Remove the right cover.
5. Remove the set camp clutch and gear, see page 11-21.
6. Remove both KL-clips from the set clamp shaft.
7. Push the bearings out of the frame assembly and remove the shaft.
