8-16 Phaser 7750 Printer Service Manual
Shutter Solenoid Assembly
1. Remove Tray 1/ (MPT), see page 8-9.
2. Remove the registration transport assembly, see page 8-15.
3. For easier access you can remove the duplex chute, see page 8-13.
4. Disconnect the wiring harness from the front frame connector.
Note
Note the locating pin position, then loosen the one screw that secures the
assembly to the frame and remove the shutter motor assembly.
Replacement Procedures
Caution
Verify that the lever is correctly positioned in the slot on reassembly.
1. Remove the Waste Cartridge.
2. Remove the Black Imaging Unit.
3. While reinstalling the shutter motor assembly, with a flashlight, verify that the
solenoid lever engages the notch in the shutter plate.
4. Tighten the mounting screw and reconnect the wiring harness.

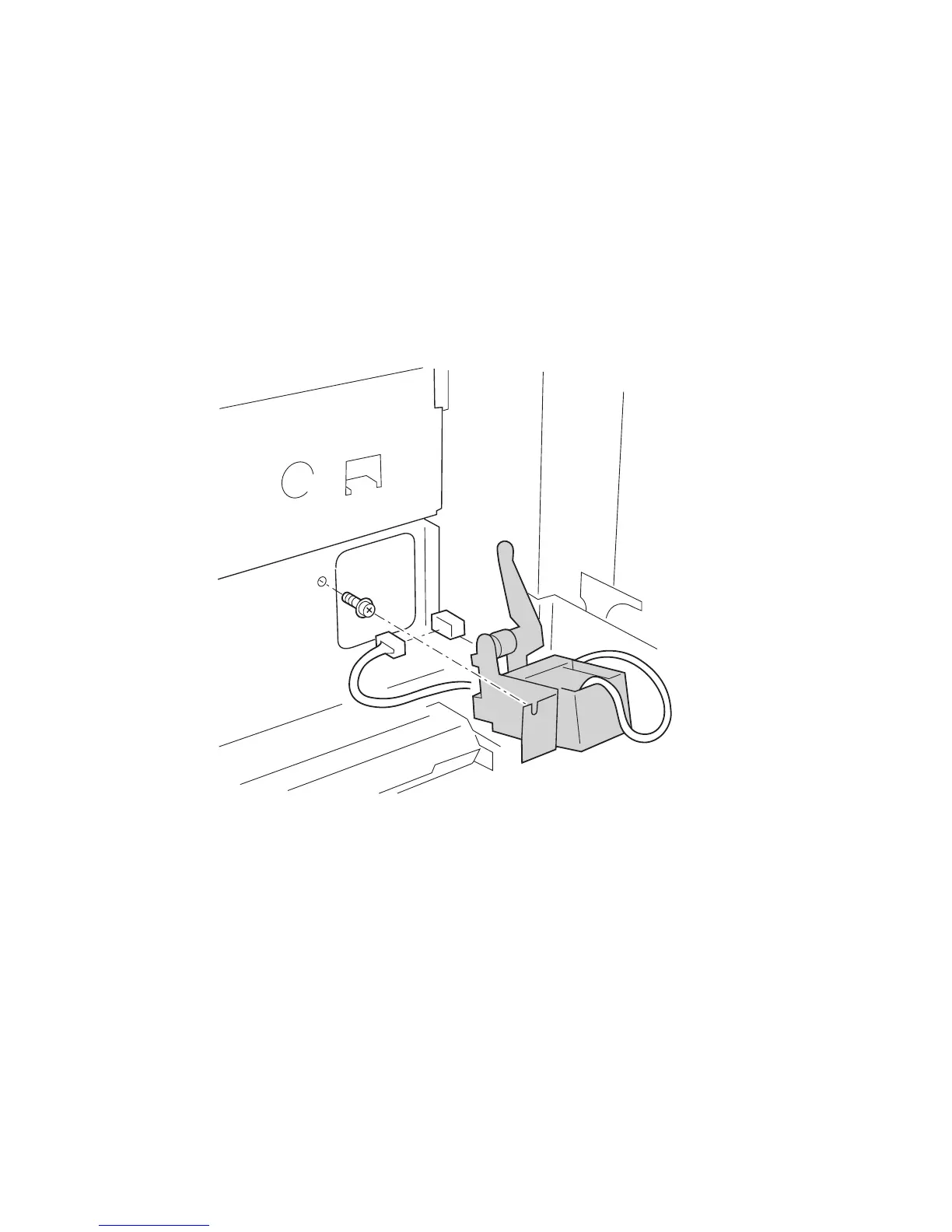

7750-021
To Next Page
