Service Parts Disassembly 8-15

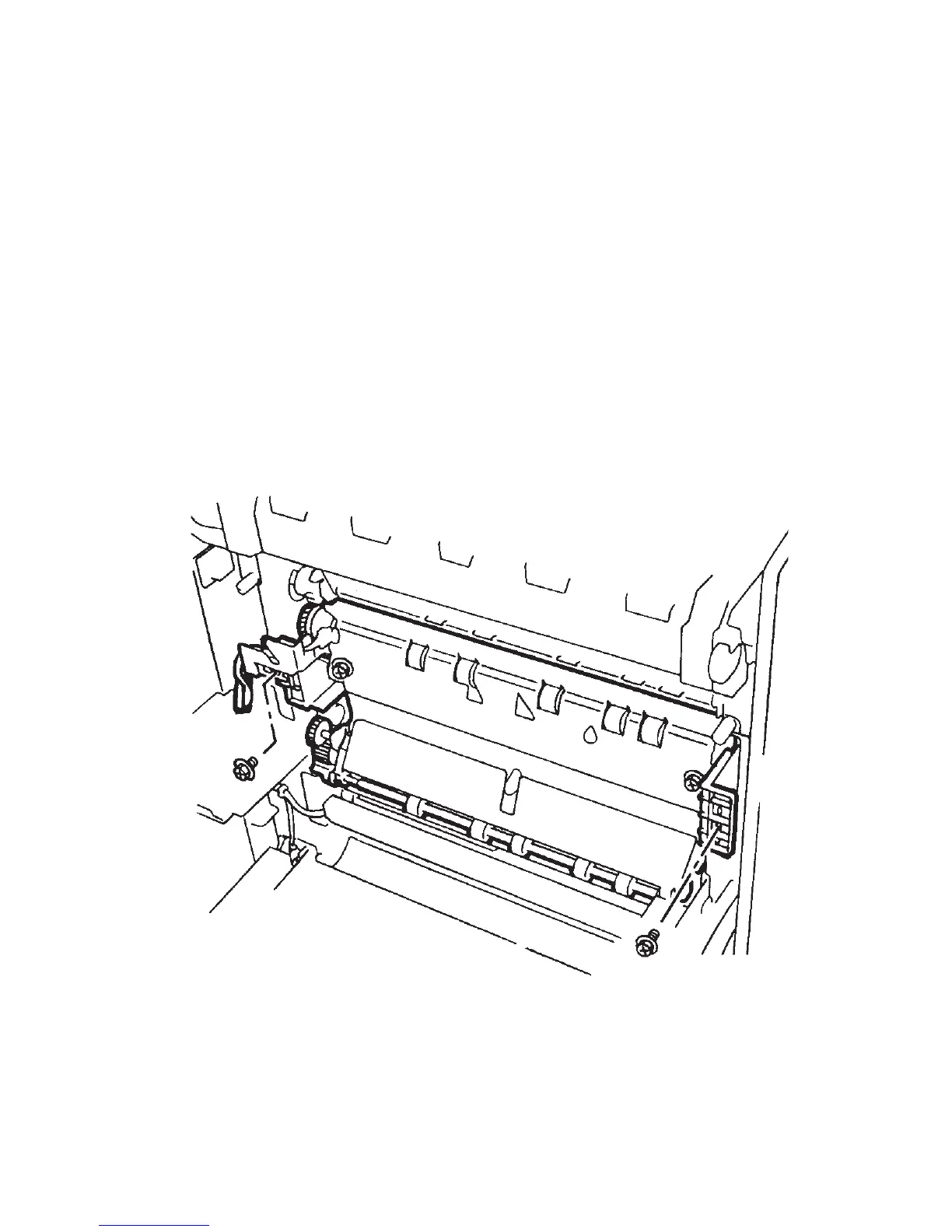

Registration Transport Assembly
Note
Do not remove the 2 inside screws.
1. Remove Left Hand Door A, see page 8-11.
2. Remove the 2 screws from the plastic flanges that secure the transport assembly
in the printer frame.
Note
Note the wiring harness position for reinstalling and make certain the wires
are routed behind the black plastic cover on the Registration Transport
Assembly.
3. Disconnect the wiring harness.
4. Remove the registration transport assembly.
7750-473
To Next Page
