Xerox 7750DXF - Phaser Color Laser Printer - Optional Lower Trays

Service Parts Disassembly 8-57

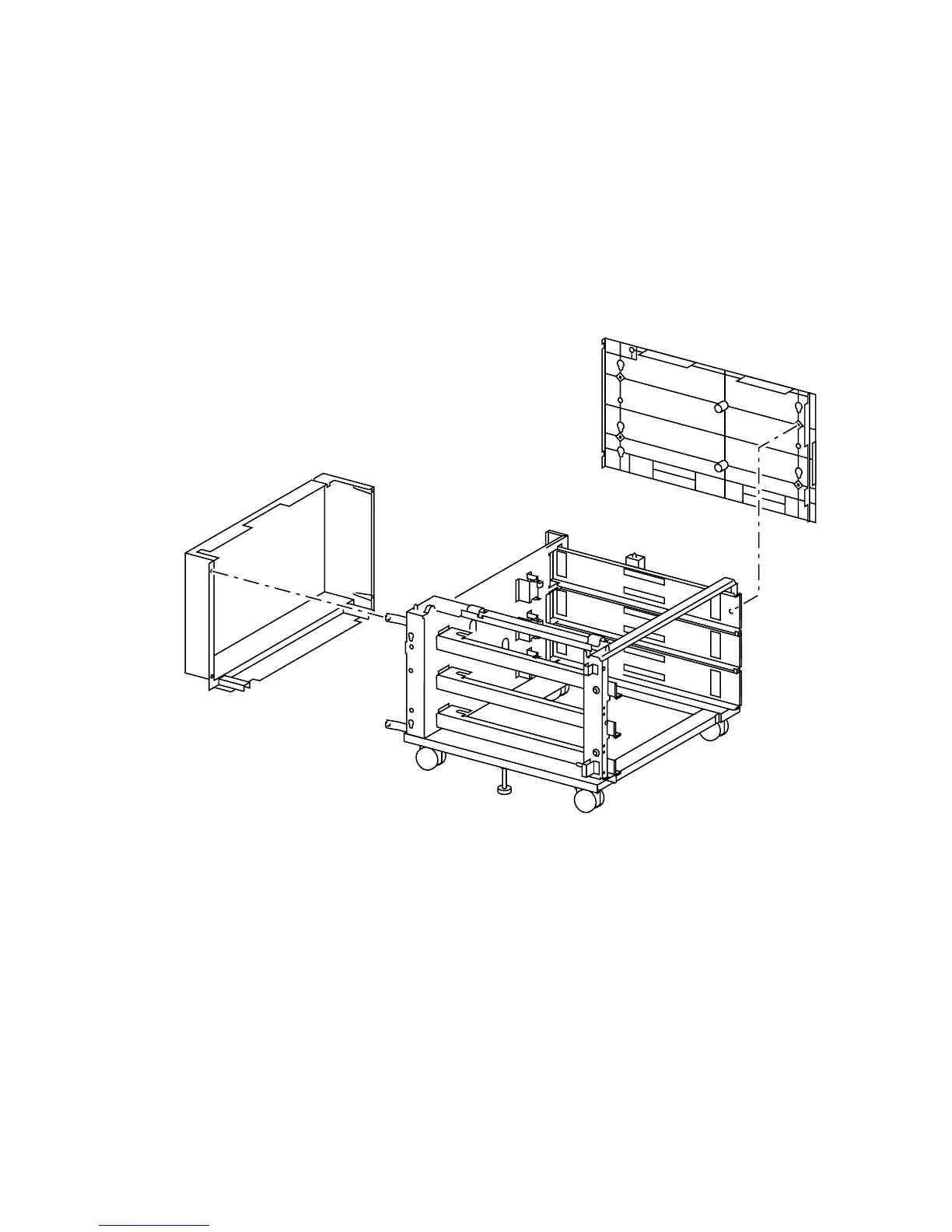

Optional Lower Trays
Right Side Door
1. Remove the 4 screws securing the right-hand cover and remove.
Rear Cover
1. Remove the 4 screws securing the cover.
2. Remove the rear cover.
7750-238
