Xerox 7750DXF - Phaser Color Laser Printer - Finisher Covers

11-17
Finisher Covers
1. Remove the Horizontal Transport Assembly, see page 11-11.
2. Remove 1 screw from the Left Panel and remove.
3. Remove 5 screws from the Rear Cover.
4. Clear the gear at the top of the Rear Cover and remove the cover.

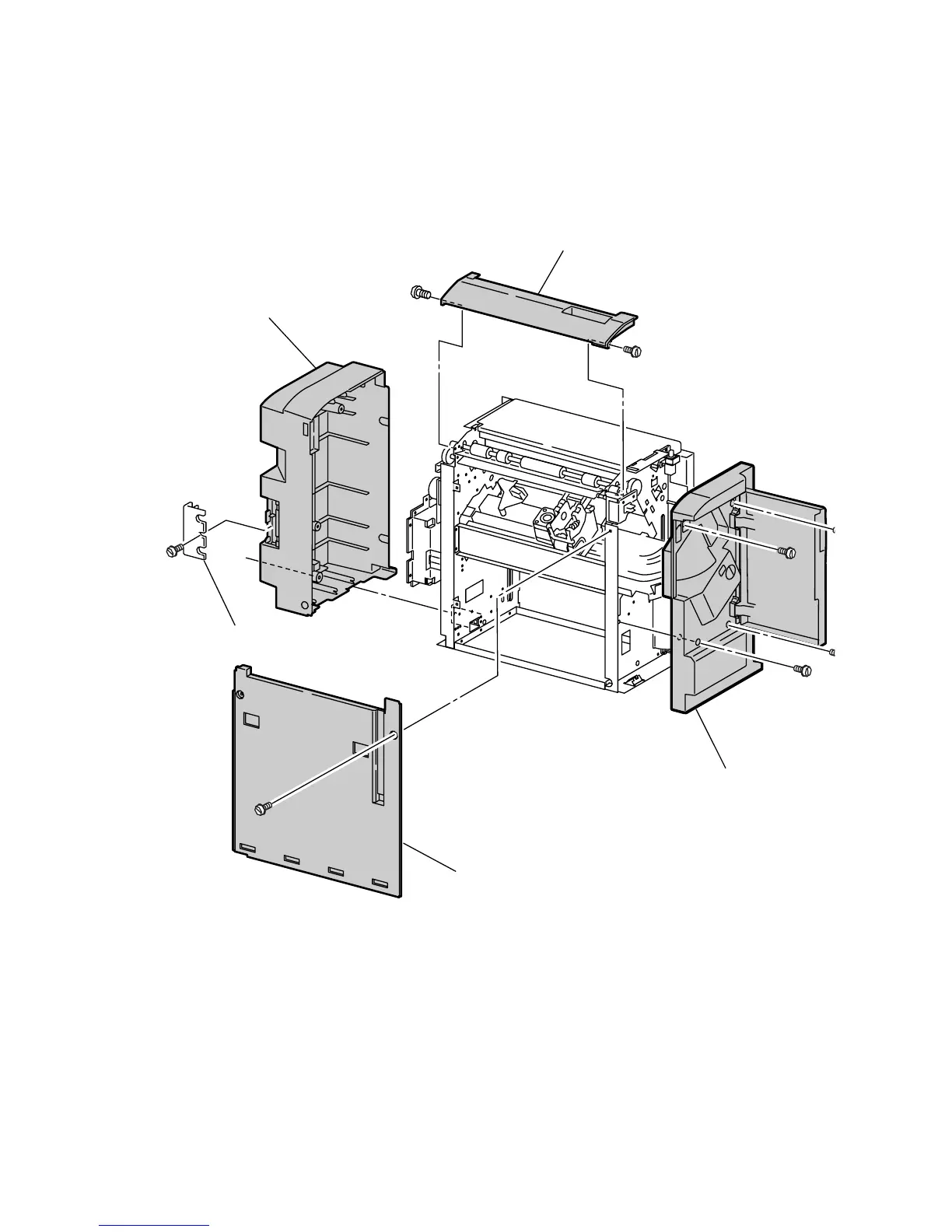

S7700-396
Front Cover
Left Panel
Left Top Cover
Rear Cover
Left Cover
