Xerox 7750DXF - Phaser Color Laser Printer - PL 17.2 Gate Assembly

11-44 Phaser 7750 Printer Service Manual

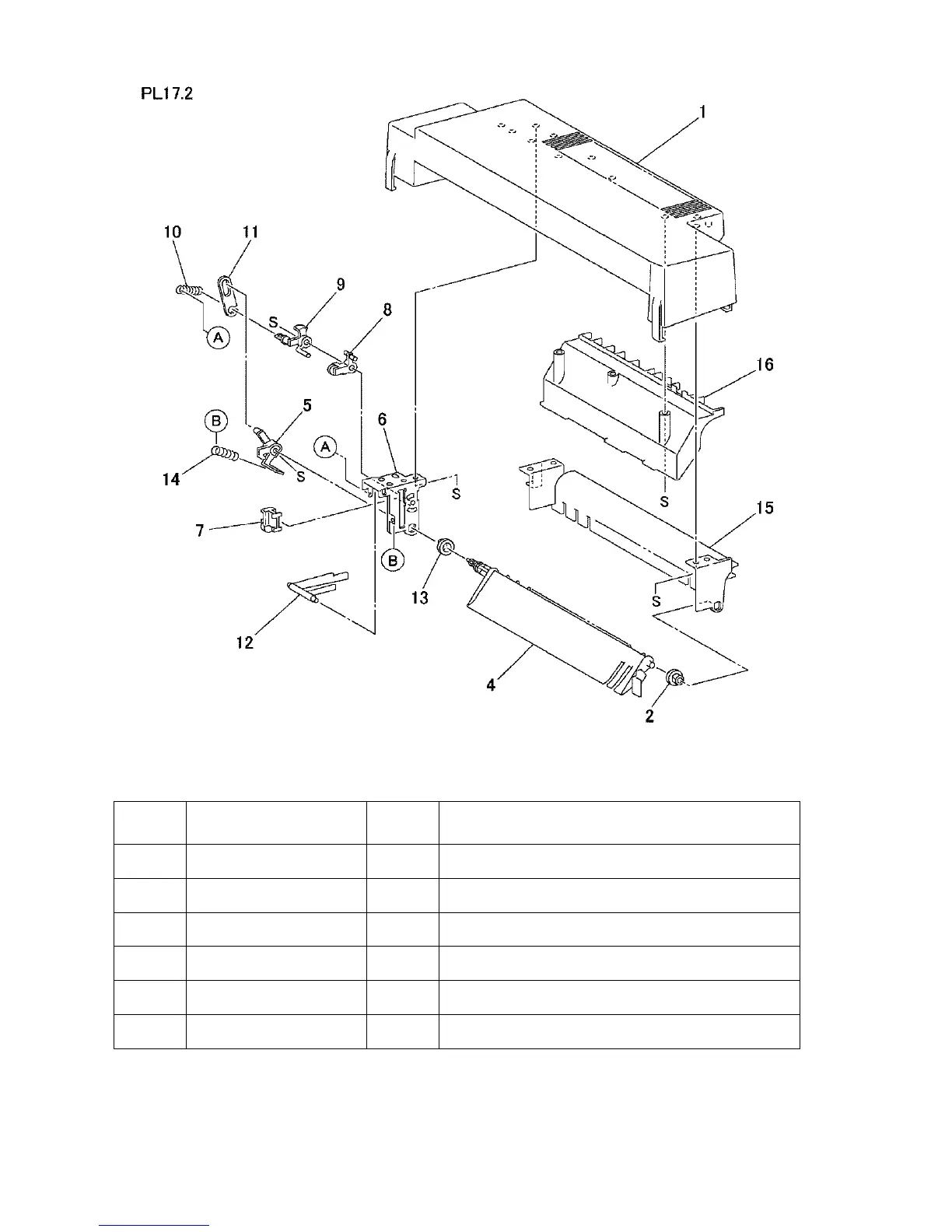

PL 17.2 Gate Assembly
Gate Assemblies PL 17.2
No. Part Number Qty Description
1
116-1292-00 Gate Cover
2
Bearing
3
116-1293-00 Gate Assembly {items 4 - 14}
4
In Gate
5
In Gate Lever
6
116-1294-00 Gate Bracket
s7750-405
