11-19

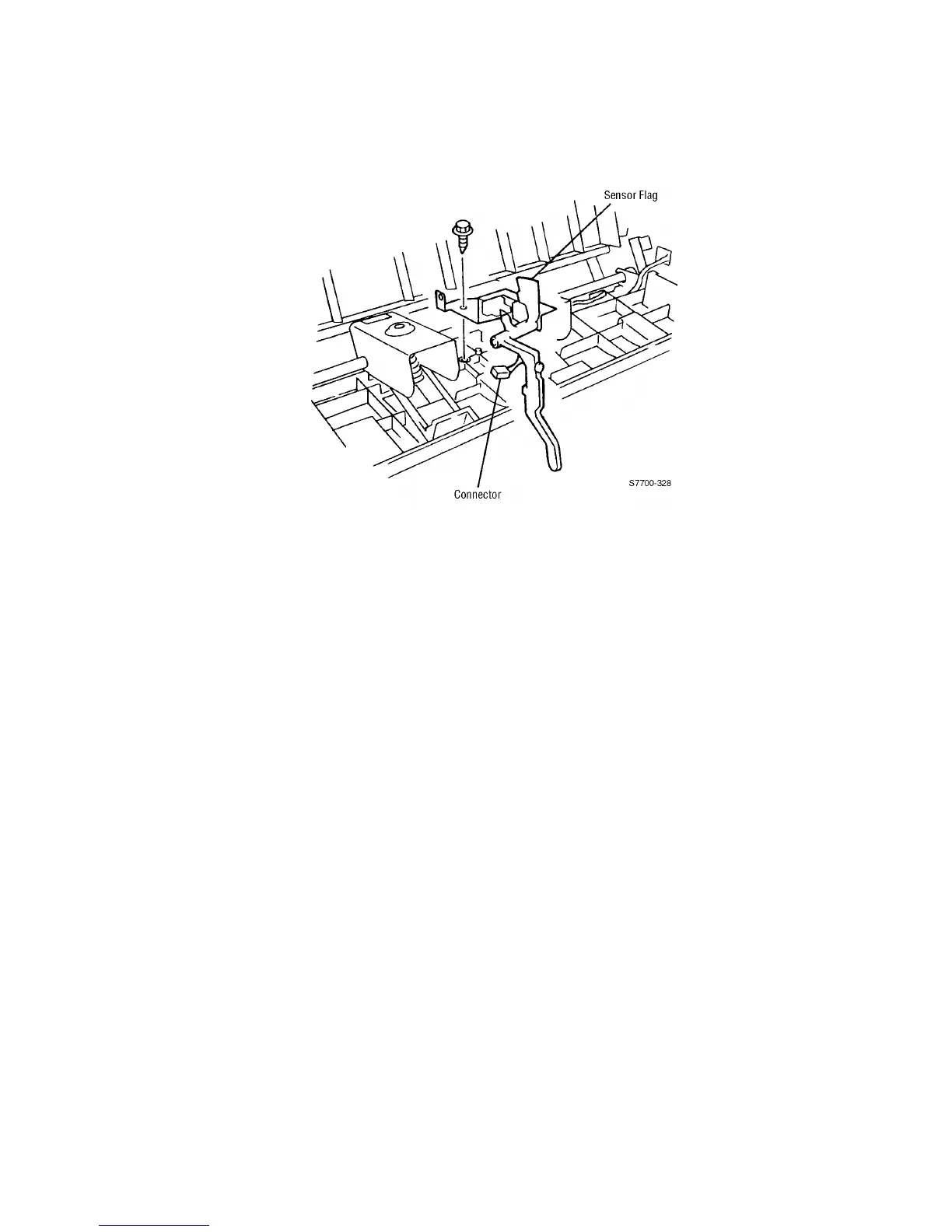

Stack Height-Sensor Assembly
1. Remove the horizontal transport assembly, see page 11-11.
2. Remove the top cover, see page 11-17.
3. Remove 1 screw from the Stack Height Sensor bracket.
4. Press down on the two locking tabs located at the top of the sensor, press up on
the two locking tabs at the bottom of the sensor and remove the sensor.
