Center Skew Adjustment
The Center Skew Adjustment (Magnification Balance) adjusts the linearity of the
scan lines. During RegiCon #3, the printer measures a specific midpoint of each scan
line and adjusts it to a horizontal reference midpoint.

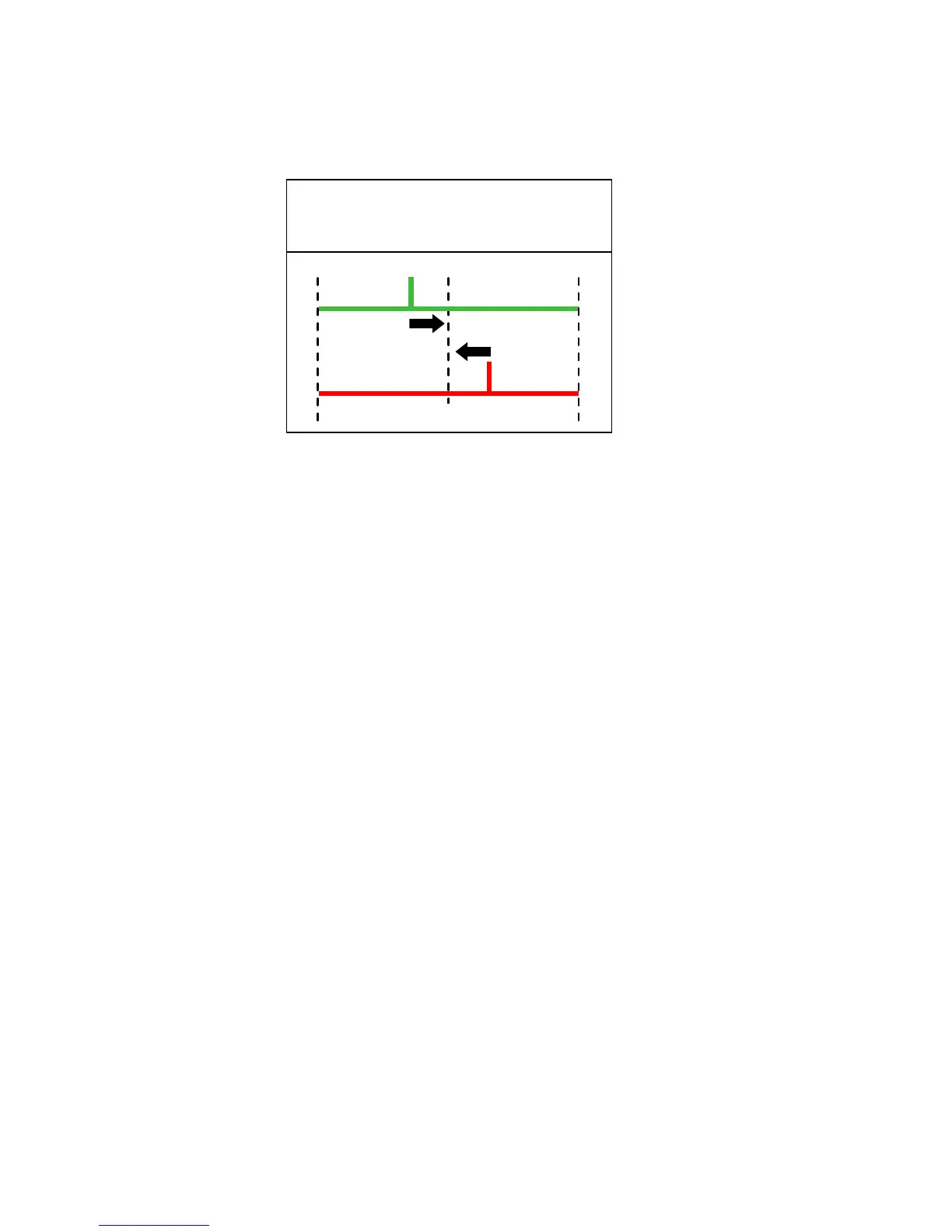

Figure 4: Magnification Balance
S7700-463
Center Reference
