Service Parts Disassembly 8-17

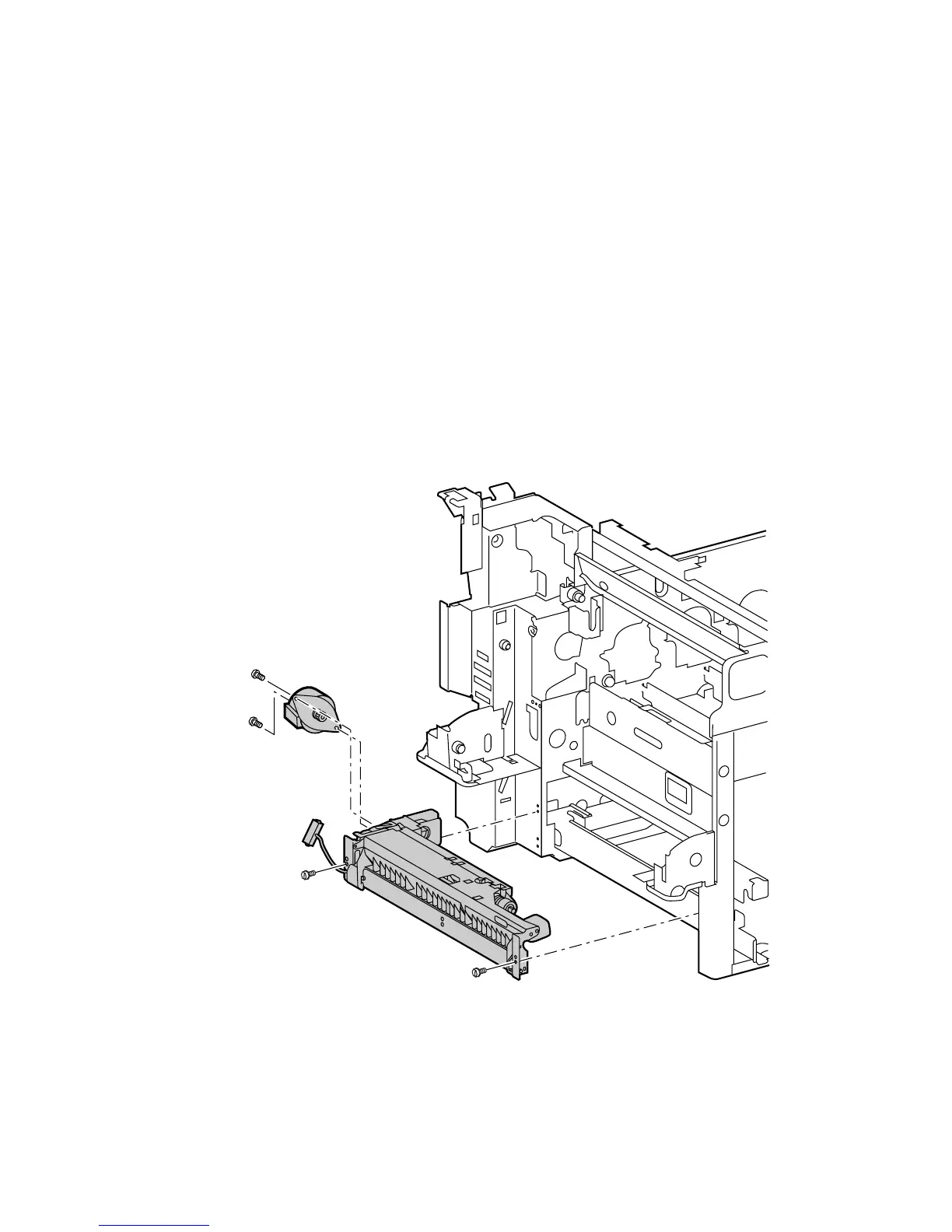

Tray 1 Feeder Assembly and Paper Lift Motor
1. Remove the Left-Hand Lower Cover Assembly.
2. Open Tray 1 halfway.
3. Disconnect the wiring harness.
4. Remove the 2 screws holding the Tray 1 feeder assembly, not the screws securing
the lower tray bracket.
5. Remove the Tray 1 feeder assembly.
6. Some manipulation may be required to disengage the gears.
Removal of Motor
1. Disconnect the wiring harness from the motor.
2. Remove the two screws securing the motor to the feeder bracket.
3. Lift the motor straight out of the bracket to clear the gear on the motor shaft.
Note
When reinstalling the motor, it may be necessary to manually rotate the
gears to mesh them with the other gears.
7750-125
