Xerox 7750DXF - Phaser Color Laser Printer User Manual

Service Parts Disassembly 8-13

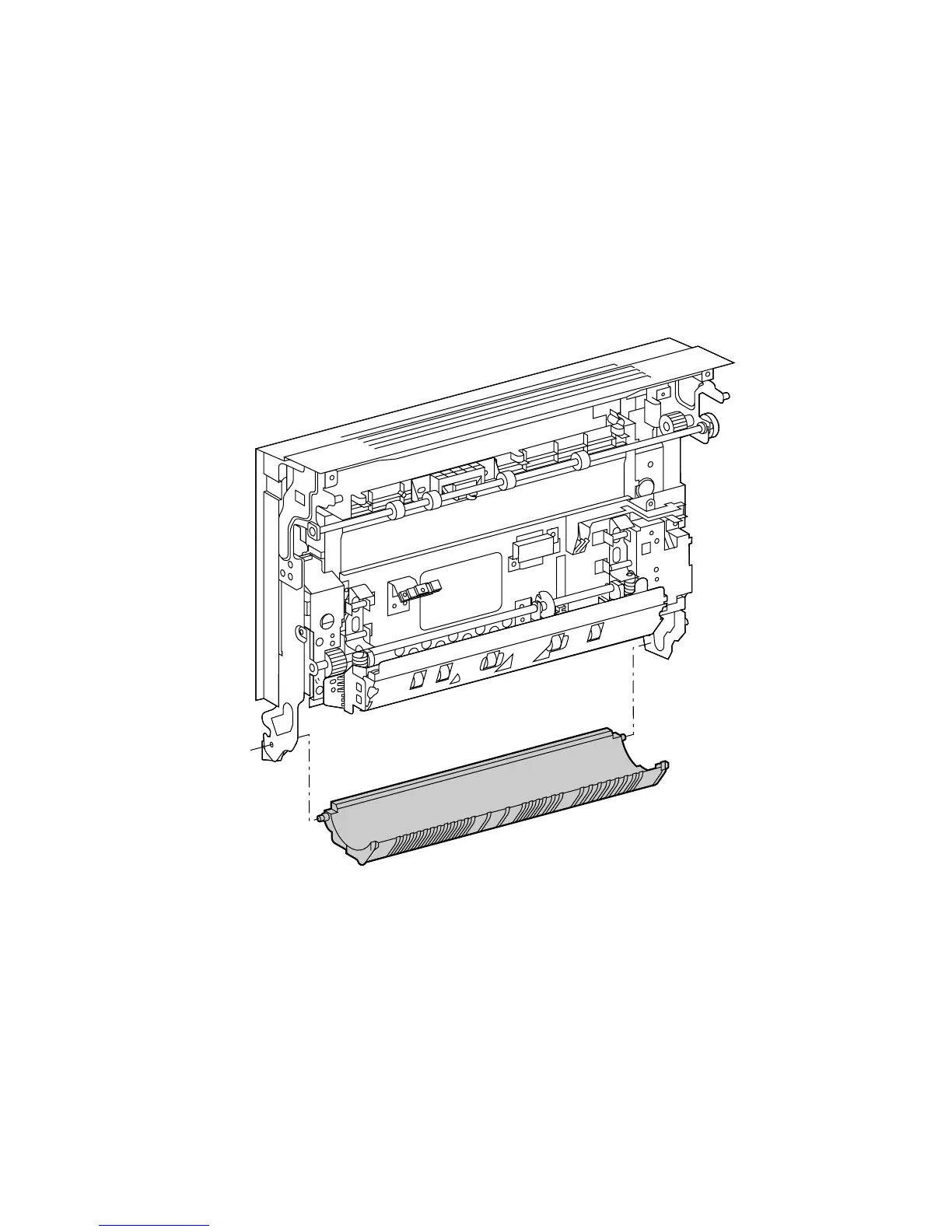

Duplex Chute
1. Remove Tray 1/(MPT), see page 8-9.
2. Open the Left Hand Door A.
3. Rotate the duplex chute downward until the keyed pivot shaft can be removed
from the pivot bracket.
4. Remove the duplex chute.
Note
The duplex chute must be in the up position to install Tray 1. Open Door A,
position the chute in the proper position, and then close the door.
7750-231
