Xerox WorkCentre 5230 User Manual

February, 2008
5-14
WorkCentre 5225, 5230
PL 2.7
Launch Version
Parts List

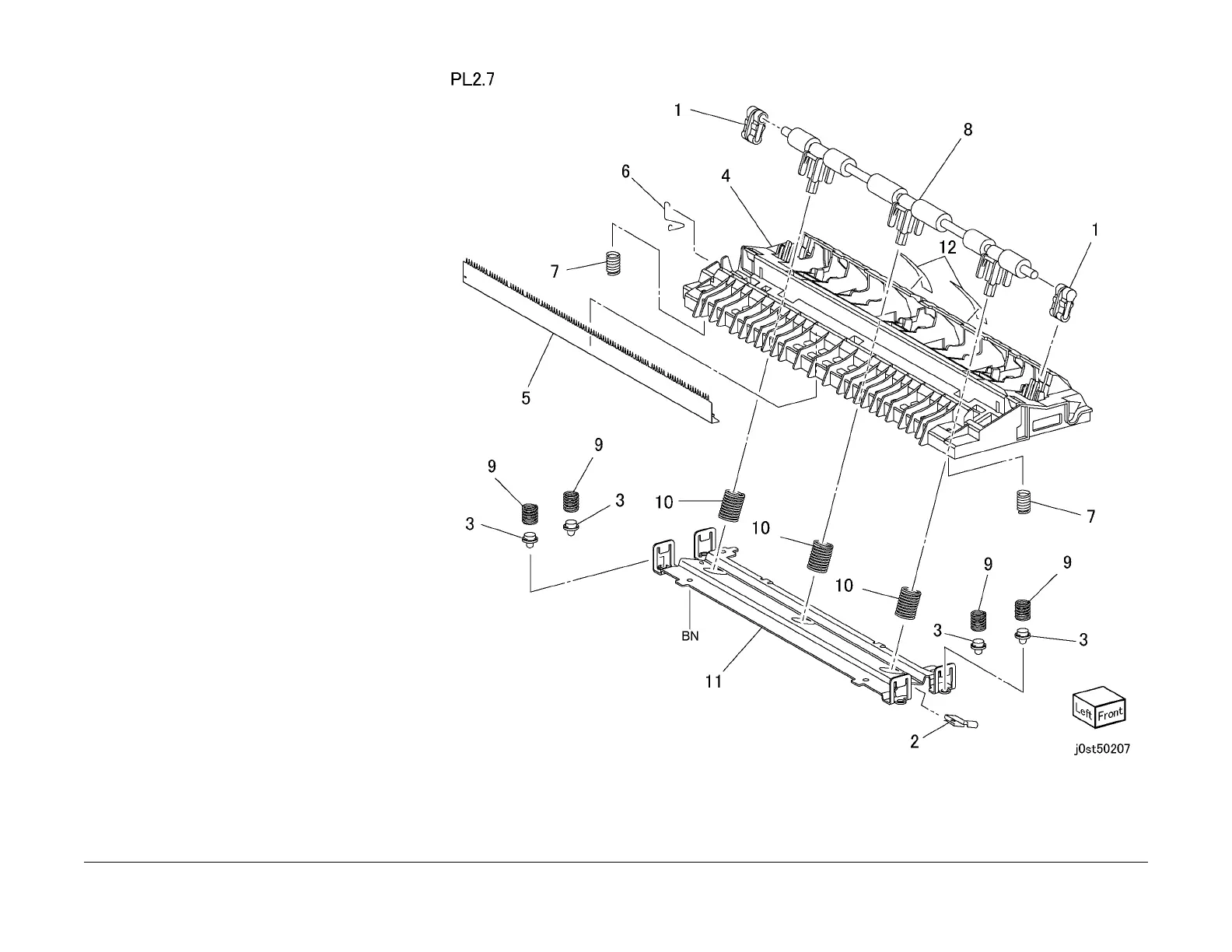

PL 2.7 L/H Upper Chute Assembly
Item Part Description
1 – Bearing (P/O PL 2.6 Item 10)
2 – Earth Plate (P/O PL 2.6 Item 10)
3 – Guide (P/O PL 2.6 Item 10)
4 – L/H Chute (P/O PL 2.6 Item 10)
5 – Eliminator (P/O PL 2.6 Item 10)
6 – Spring Contact (P/O PL 2.6 Item
10)
7 – Spring Chute (P/O PL 2.6 Item 10)
8 – Pinch Roll (P/O PL 2.6 Item 10)
9 – Spring (P/O PL 2.6 Item 10)
10 – Spring (P/O PL 2.6 Item 10)
11 – Plate (P/O PL 2.6 Item 10)
12 – Guide (P/O PL 2.6 Item 10)
