February, 2008
4-136
WorkCentre 5225, 5230
REP 16.2.5
Launch Version
Repairs and Adjustments
REP 16.2.5 Eject Cover
Parts List on PL 23.10
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical
power applied to the machine.
1. Remove the Eject Cover. (Figure 1)
a. Unlatch the Eject Cover, and move it to the left.
b. Remove the Retaining Screw (1).
c. Push the Latch through the hole in the Cover.
d. Remove the Cover by moving it to the left.

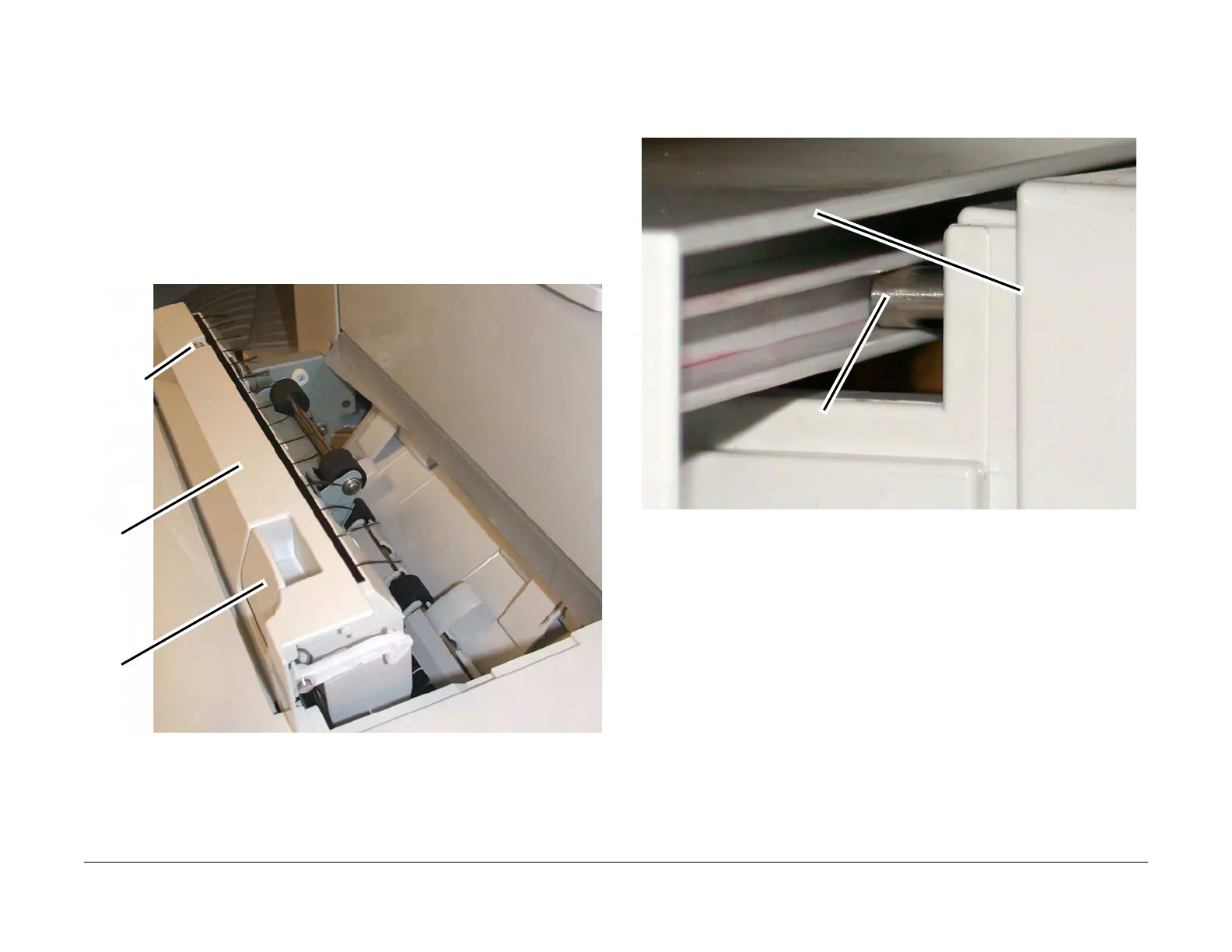

Figure 1 Removing the Eject Cover (j0st41682)
Replacement
1. Align the Eject Cover with the Pins (2) on both sides, and slide it to the right. (Figure 2)
NOTE: The left side of the Cover is now captured by the Pins and cannot be lifted up.
Figure 2 Aligning the Eject Cover (j0st41681)
Eject
Cover
etaining
crew
Latch
Pin (2)
Eject Cover
