Xerox WorkCentre 5230 User Manual

February, 2008
5-7
WorkCentre 5225, 5230
PL 1.1
Parts List
Launch Version

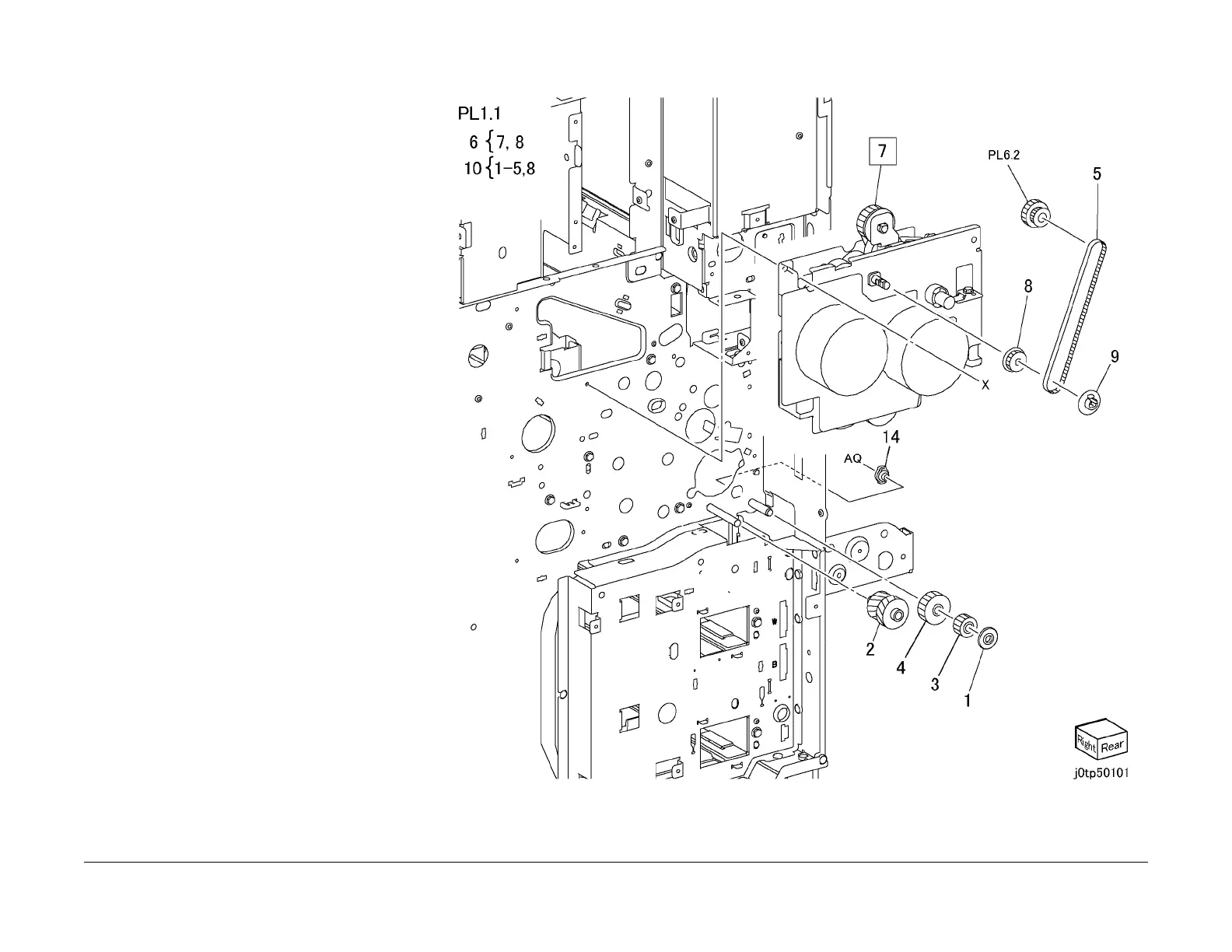

PL 1.1 Main Drive
Item Part Description
1 – Collar (P/O PL 1.1 Item 10)
2 – Gear (21/21T) (P/O PL 1.1 Item 10)
3 – Gear (18T) (P/O PL 1.1 Item 10)
4 – Gear (21T) (P/O PL 1.1 Item 10)
5 – Belt (P/O PL 1.1 Item 10)
6 007K88585 Main Drive Unit
7 – Main Drive Assembly (P/O PL 1.1
Item 6) (REP 1.1.1)
8 – Pulley (P/O PL 1.1 Item 6, 10)
9 005E17860 Flange
10 604K20500 Drive Gear Kit

Xerox WorkCentre 5230 Specifications

General

Maximum print size	A3 (297 x 420 mm)
Standard input capacity	500 sheets
Internal memory	No MB
Type	Digital copier
