Xerox WorkCentre 5230

February, 2008
4-27
WorkCentre 5225, 5230
REP 4.2.1
Repairs and Adjustments
Launch Version
3.Remove the Dispense Motor.

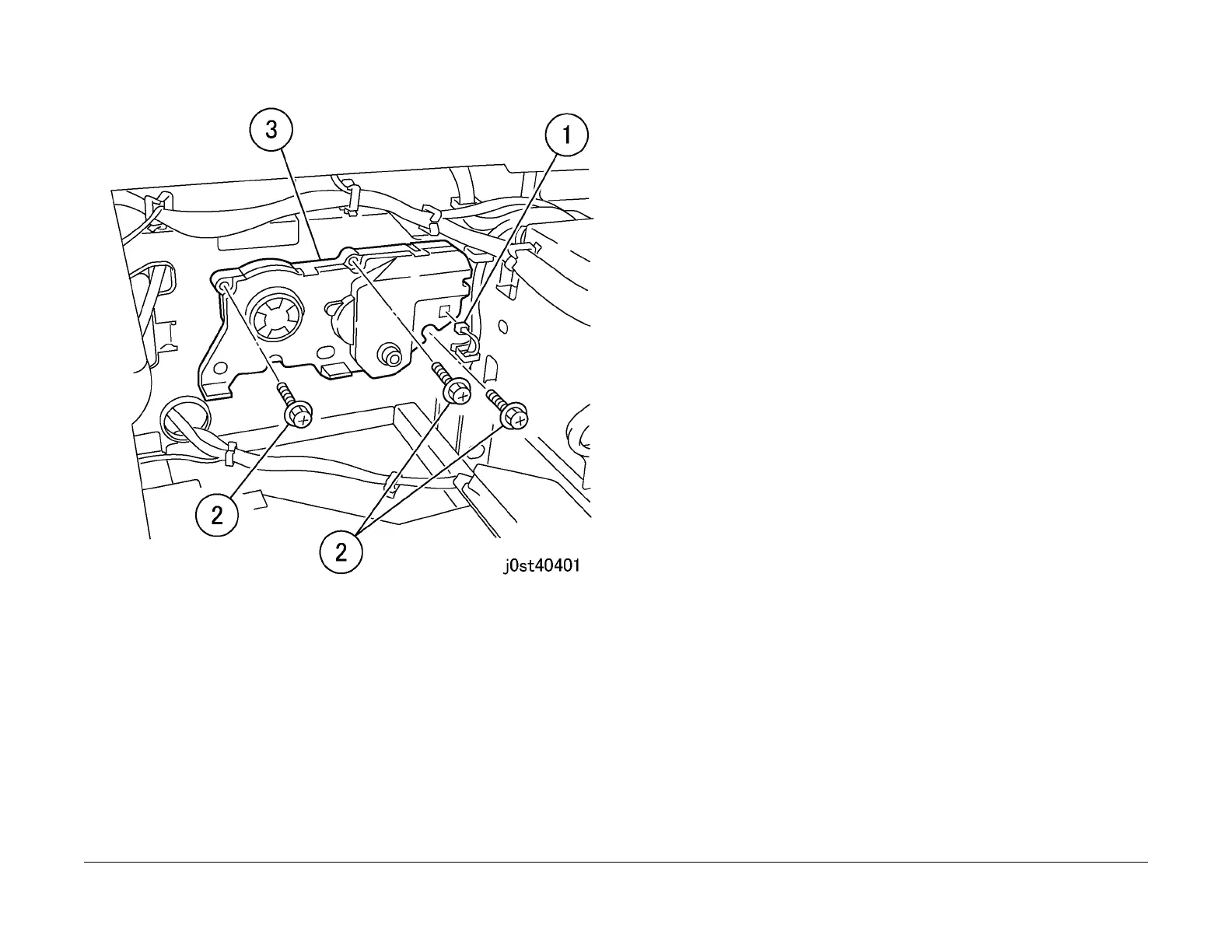

Figure 4 Removing the Dispense Motor (j0st40401)
Replacement
1. To install, carry out the removal steps in reverse order.
